Actuators for lighting and shutter control

BT-F411U2

Actuator 2-channels management of LED lamps , compact fluorescent lamps ( CFL ) , linear fluorescent with electronic transformers and ferromagnetic transformers. Each channel is capable of switching up to a maximum of 10A . The device incorporates the function Zero crossing for proper management of energy-saving lamps – 10A incandescent lamps , fluorescent lamps 4A . and ferromagnetic transformers , fluorescent lamps 2A . compact LED – 2 DIN modules

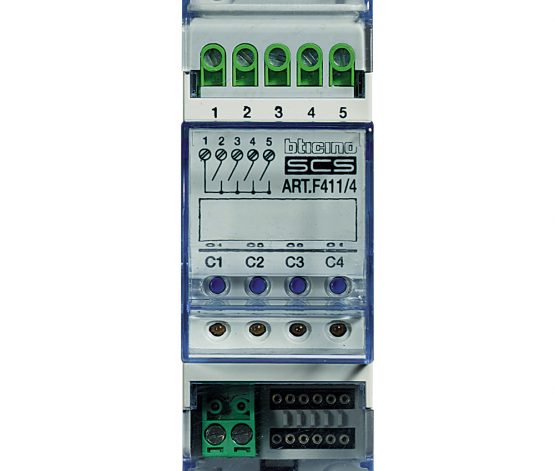

BT-F411-4

4 independent relay actuator – for single, double and combined loads: 6 A resistive and 2 A for filament lamp, 500 W for motor reducers, 2 cos? 0.5 for ferromagnetic transformers, and 70 W for fluorescent lamps – logic relay interlock via configuration – 2 DIN modules
