EBDSPIR

Compact, flush mounted, ceiling PIR presence detectors

Features
Key features:
  • Low profile design
  • Self-contained unit
  • Pluggable
  • Infrared programmable
  • 5-year warranty included
Available options:
  • PRM – 1 channel
  • 2CH – 2 channel
  • 2CH-NC – 2 channel normally closed fail-safe
  • 2CH LV – 2 channel low voltage
  • LT30 – Low temperature
  • VFC – Voltage free contact
  • VFC NC – Normally closed
  • LV – Low voltage
  • VFC LV – Volt free contact, low voltage
  • VFC LV NC – Volt free contact, low voltage, normally closed
  • AD – Analogue dim
  • DD- Digital Dim (Dali/Dsi)
  • Optional: IP55
  • Optional: Low temperature
  • KNX

These compact PIR detectors provide automatic control for lighting, heating and ventilation loads. The PIR sensor can be mounted either flush into a ceiling tile or using a surface mounting box.

The low profile design means the unit can be mounted in a narrow ceiling void. No external control boxes are required as the unit is self-contained. The simple plug-in connections reduce installation time. The optional infrared remote handset allows the user to override the set up on some models. PRM, DD and AD versions' functionality is fully programmable using either the UHS5 or UNLCDHS handsets.

For Product Guides for earlier versions with manual control, search for the guide via the Support Services Products Guides page.

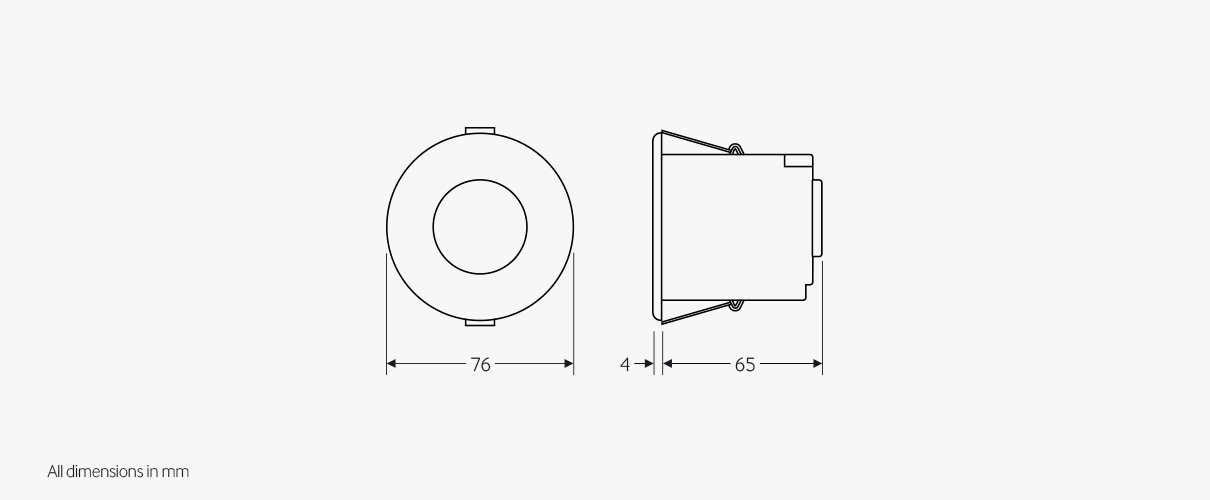

ebdspir-Dimensions

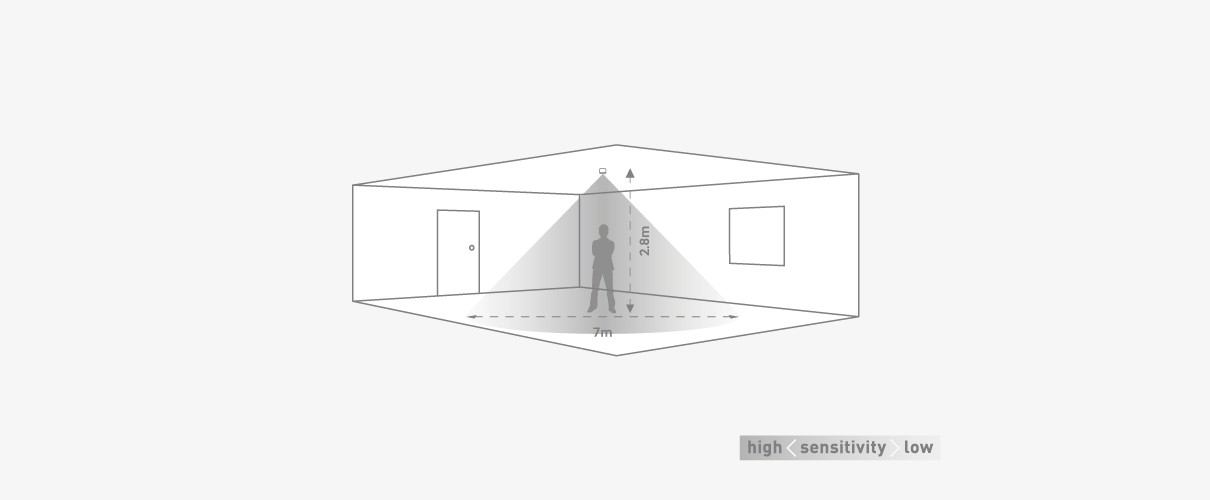

ebdspir-coverage

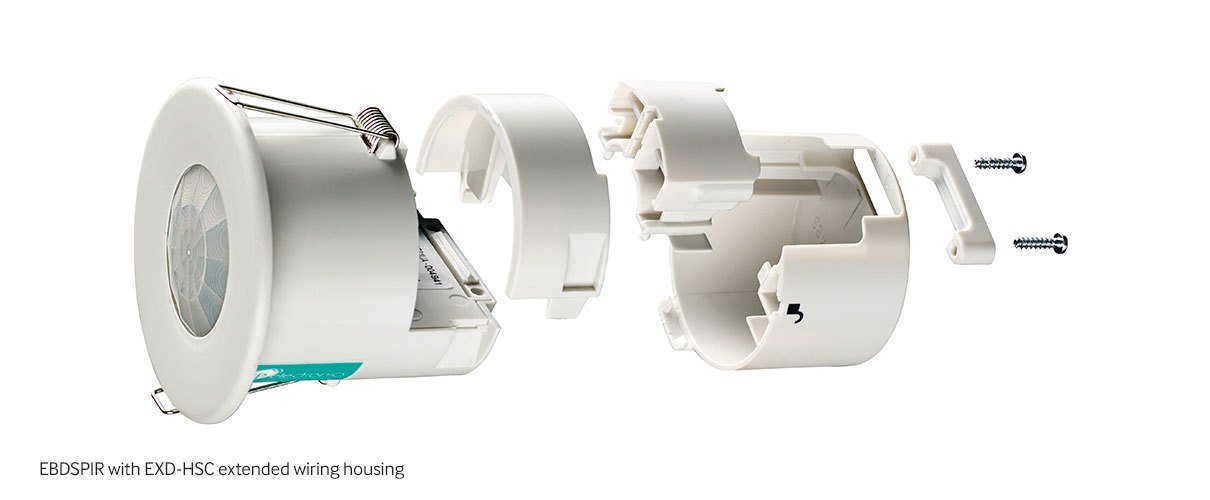

ebdspir-sideview

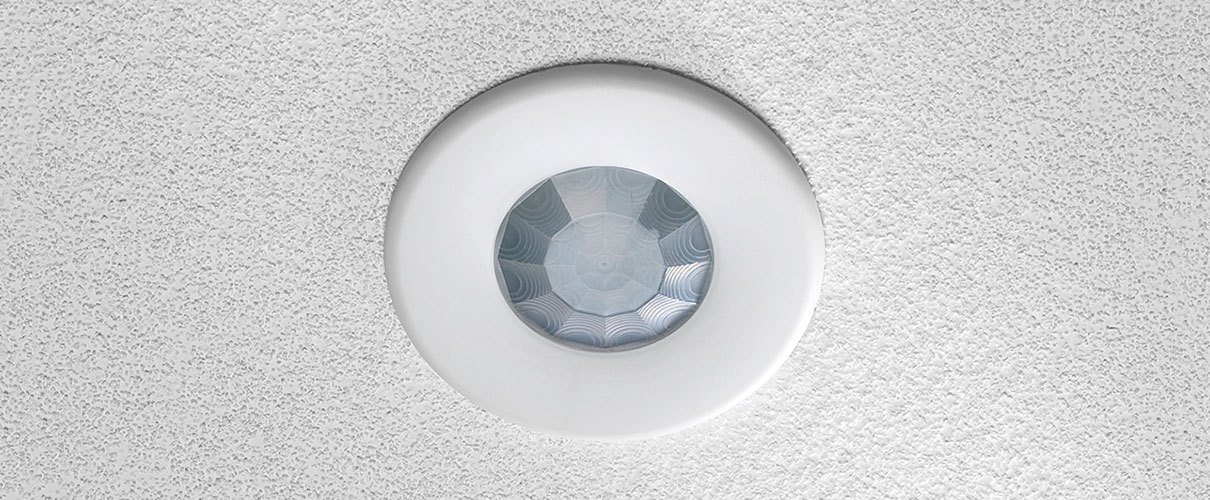

ebdspir-inceiling

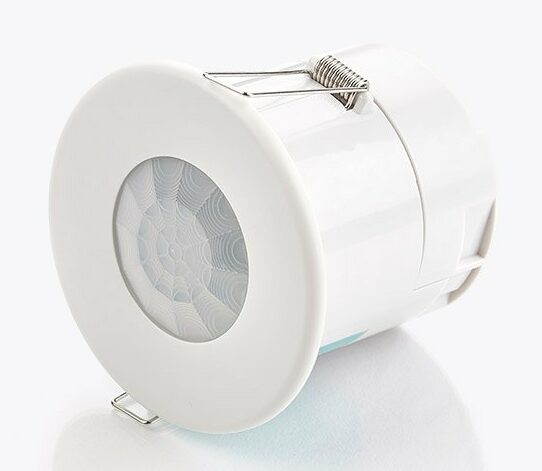

ebdspir-main
