Miniature, flush/surface mounted, ceiling, PIR presence detectors

EBMHS

Miniature, flush/surface mounted, ceiling, PIR presence detectors

Features

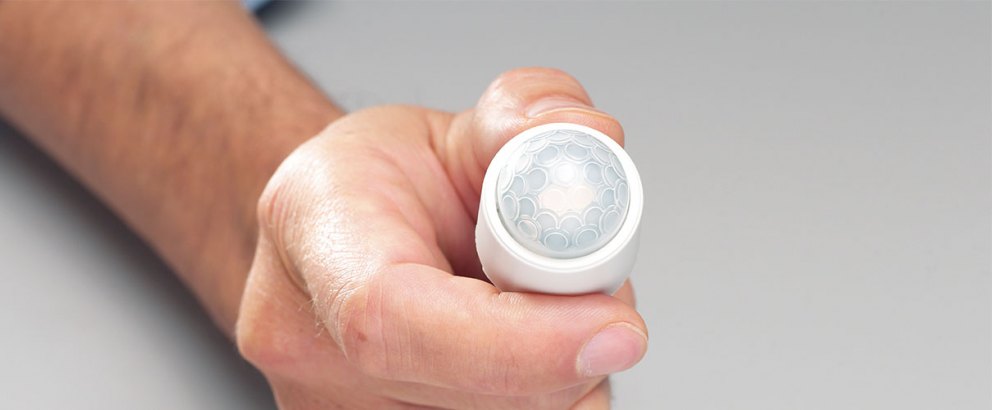

Small and unobtrusive design
High sensitivity head for increased detection range

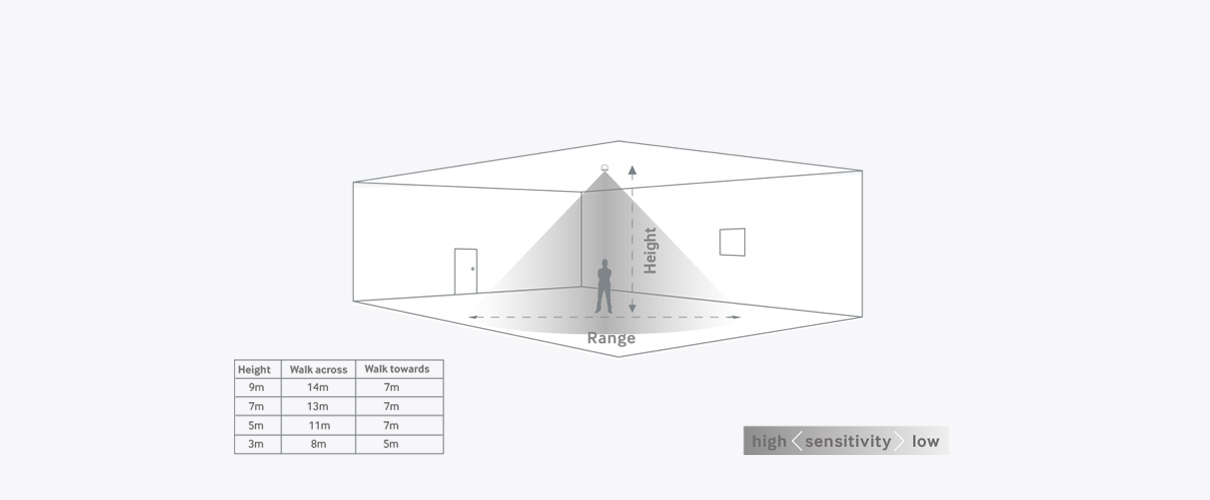

For mounting at heights up to 9m
Supplied pre-wired with an RJ11 plug for connection into the power supply

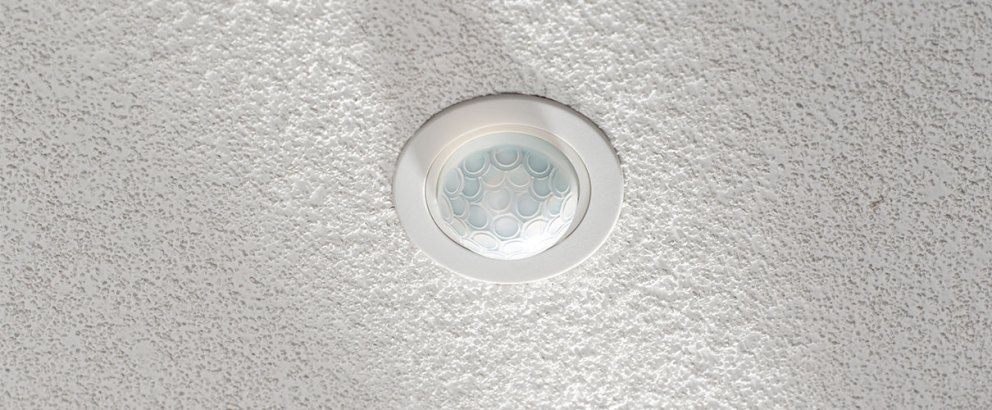

Supplied with a flush mounting ring for easy fitting into the ceiling.
Available with standard or slim line PSU
Infrared programmable
5 year warranty
Available options:
- PRM – 1 channel
- AD – Analogue dim
- DD- Digital Dim (Dali/Dsi)

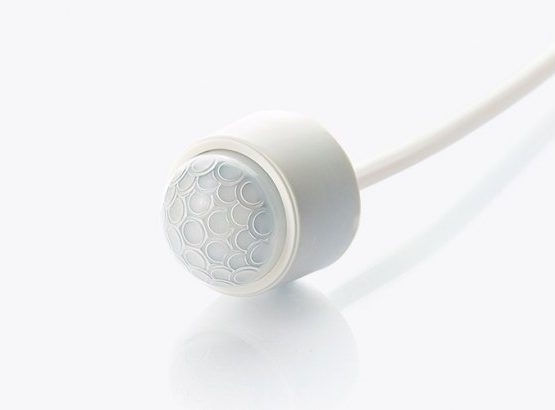

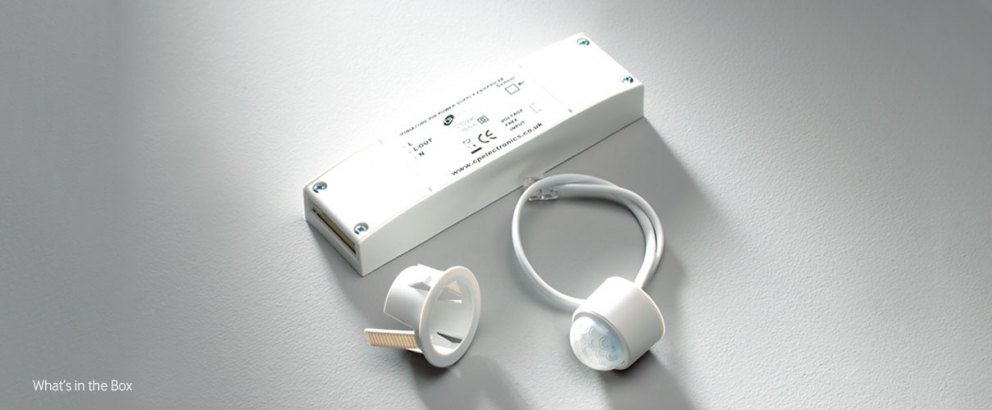

The small but highly capable EBMHS detector is supplied pre-wired, and with a connector that snap-fits into the power supply unit (PSU) for ease of installation.

Available with either a standard PSU, or for luminaire mounting a slim-line PSU, you can select the option which best suits your needs.

Three models are available: premium (PRM), direct dim (DD), and analogue dim (AD) all of which will switch a wide range of luminaires. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1-10V dimming ballasts.
