048921

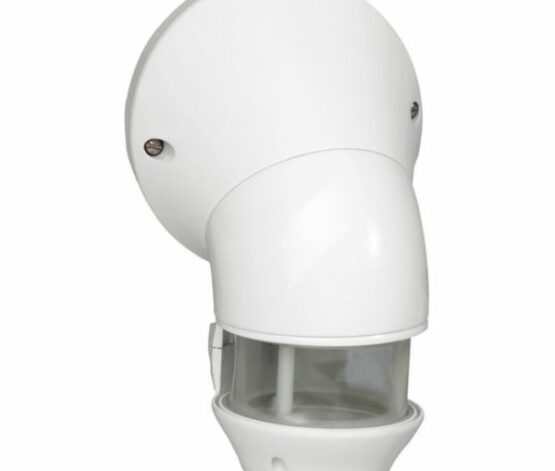

KNX Outdoor Motion Sensor

Features
  • Passive Infrared (PIR) motion detection
  • Wide 270° detection angle
  • Detection range up to 18 m at 2.5 m mounting height
  • Automatic lighting ON/OFF control based on occupancy
  • Constant light control with daylight harvesting functionality
  • Adjustable sensitivity and luminosity thresholds
  • Multi-lens sensor with directional head for optimized coverage
  • Suitable for outdoor and humid environments
  • ETS configurable
  • Networkable within KNX installations
  • Low power consumption (0.5 W)







The KNX Outdoor Motion Sensor is a high-performance PIR detector designed for automatic lighting control in outdoor and humid environments. Featuring a wide 270° detection angle, long-range motion detection, and integrated daylight monitoring, it automatically adjusts lighting based on occupancy and natural light levels, improving both energy efficiency and user comfort. Its robust IP55-rated design makes it ideal for exterior applications and demanding environments.

Benefits

  • Automatically controls lighting according to movement and daylight availability
  • Reduces energy consumption by preventing unnecessary lighting operation
  • Ideal for outdoor areas exposed to changing natural light conditions
  • Robust IP55 design ensures reliable performance in humid and exterior environments
  • Flexible sensor adjustment enables accurate coverage of entrances, pathways, façades, terraces, and outdoor circulation areas
  • Seamlessly integrates with KNX-certified devices for scalable smart building solutions
  • Simplifies commissioning and optimization through ETS configuration
KNX Outdoor Motion Sensor

Other
Products

Downloads

KNX Outdoor Motion Sensor-technical sheet
