EQ73ST-INSTALL

Equinox 7” Install Kit

Features
  • 12VDC 2A Power supply optional if PoE (Power over Ethernet) isn’t used (DIN-POWER-EQ73)
  • 111mm x 162mm x 65mm
  • Kit comes complete with adjustable support frame

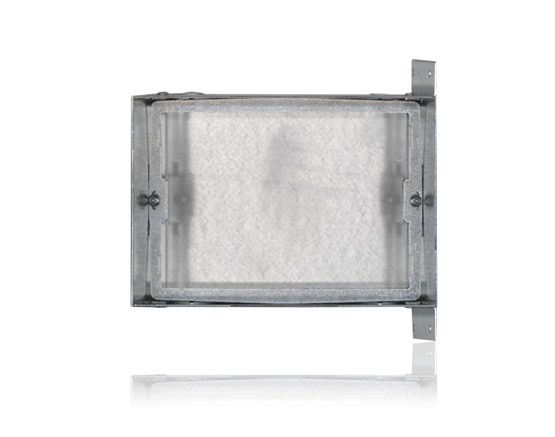

The Equinox 7” Install Kit is the standard install kit which is designed to mount the Equinox 7” LCD Touchscreen and is primarily for new construction applications.

If applicable: for simplicity this wall box may be mounted on the left or right side of the framing studs, an optional bracket VHA-1112 is available to support the wall box centrally between framing studs.

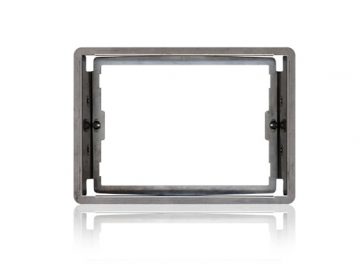

An inner support ring is pre-installed and used to fix horizontal rotation and z dimension for perfect on-wall alignment of the LCD Touchscreen. Rough-in should include power and communication pre-wire via an Ethernet POE connection.

Other
Products

Downloads

EQ73ST_Sellsheet

574 KB
