048462, 048464, 048463, 048465

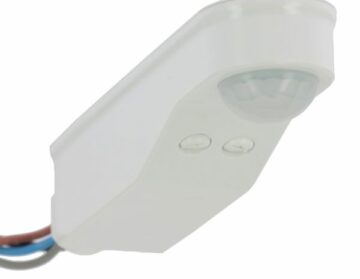

Green-i Mini Presence Detectors

Features
  • 360° passive infrared (PIR) presence detection
  • Detection coverage up to 9 m diameter
  • Presence detection area up to 64 m²
  • Adjustable sensitivity and brightness threshold (5 to 2000 lux)
  • Optional Green-I GI-REM remote control for commissioning and adjustments
  • Graduated potentiometers for rapid local configuration
  • Compact sensor head with separate ballast for discreet installation
  • Push-button interface for local control and commissioning
  • Zero-crossing technology for improved LED compatibility and reliable switching
  • Supports flexible and rigid cables from 1.5 mm² to 2.5 mm²
  • Flush-mounted ceiling installation without installation box
  • IP20 protection rating
  • IK04 impact resistance



Available Options

  • 048462: Mini Recessed ON/OFF, White
  • 048464: Mini Recessed ON/OFF, Black
  • 048463: Mini Recessed DALI, White
  • 048465 : Mini Recessed DALI, Black

The Green-I Mini Presence Detectors deliver intelligent occupancy and daylight-based lighting control in a compact and discreet form factor. Designed for installations where space is limited, these flush-mounted ceiling sensors combine 360° passive infrared detection, daylight harvesting capabilities, and flexible commissioning options to optimize comfort and energy efficiency. Their mini sensor head and separate ballast enable installation in confined ceiling voids while maintaining a clean architectural appearance.

Benefits

  • Compact design allows installation in small ceiling voids and architecturally sensitive spaces
  • Optimizes energy consumption through occupancy-based and daylight-responsive lighting control
  • Available in both ON/OFF and DALI versions to meet a wide range of lighting control requirements
  • Simplifies installation with a separate ballast and precise drill-hole integration
  • Reduces commissioning time through local potentiometers and optional remote configuration
  • Ensures reliable operation with LED and conventional lighting systems
  • Blends discreetly into modern interiors thanks to its miniature form factor
  • Supports sustainable building strategies through intelligent lighting automation and energy savings
LG-048462 (white)
LG-048464 (black)

Other
Products

Downloads

MINI RECESSED DALI LIGHTING CONTROL SENSOR-technical sheet

MINI RECESSED ON-OFF LIGHTING CONTROL SENSOR-technical sheet
