048450, 048454, 048451, 048455

Green-i standard flushmount presence detectors

Features
  • 360° passive infrared (PIR) presence detectionù
  • Detection coverage up to 14 m diameter
  • Presence detection area up to 154 m²
  • Constant light control with daylight harvesting functionality
  • Automatic ON/OFF lighting control based on occupancy
  • Adjustable sensitivity and brightness threshold (5 to 2000 lux)
  • Optional Green-I GI-REM remote control for commissioning and adjustments
  • Patented sliding ring concealing configuration potentiometers while maintaining easy access
  • Innovative plug-in screw terminals for quick installation
  • Compatible with flexible and rigid cables (1.5 mm² to 2.5 mm²)
  • Zero-crossing technology for reliable switching and improved LED compatibility
  • Push-button input for manual control integration
  • Flush-mounted ceiling installation
  • Staircase lighting controller functionality
  • IP41 protection rating
  • IK04 impact resistance



Available Options:

  • 048450 : ON/OFF, White
  •  048454: ON/OFF, Black
  • 048451: DALI, White
  • 048455 : DALI, Black

The Green-i standard recessed presence detectors deliver intelligent lighting control through advanced 360° passive infrared detection, daylight harvesting, and flexible configuration options. Designed for commercial, educational, and office environments, these ceiling-mounted sensors automatically manage lighting based on occupancy and ambient light levels, helping improve comfort while reducing energy consumption. Featuring a patented sliding ring, plug-in screw terminals, and optional remote commissioning, the Green-i range combines innovative design with simple installation and reliable performance.

Benefits

  • Optimizes energy consumption through occupancy-based and daylight-responsive lighting control
  • Supports both standalone switching and advanced DALI lighting management applications
  • Simplifies installation with innovative plug-in terminals and intuitive commissioning tools
  • Reduces setup time through local potentiometers and optional remote configuration
  • Ensures reliable operation with LED, fluorescent, and conventional lighting technologies
  • Combines elegant aesthetics and functionality through the patented concealed-adjustment design
  • Suitable for offices, classrooms, meeting rooms, educational facilities, circulation areas, and commercial spaces
  • Contributes to sustainable building performance through intelligent lighting automation and energy savings

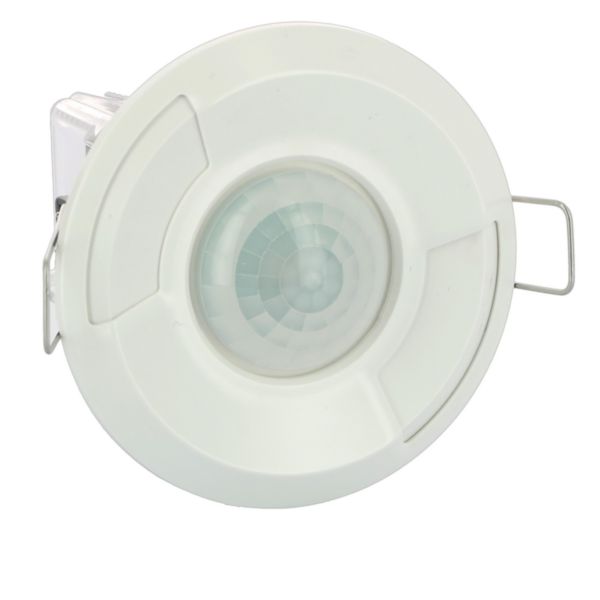

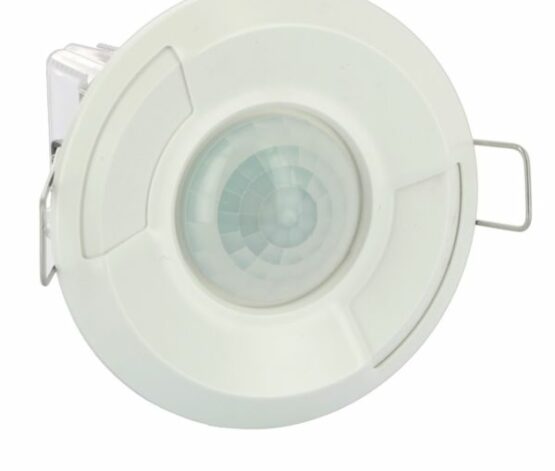

LG-048450 (white)

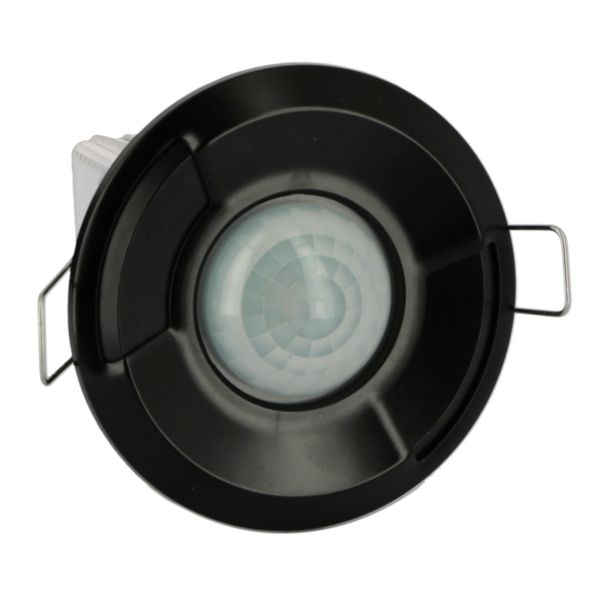

LG-048454 (black)
