Green-i Corridor flushmount Presence Detectors

048466, 048467

Features

360° passive infrared (PIR) presence detection
Detection range up to 24 m frontal reach and 5 m lateral reach
Coverage area up to 120 m²
Automatic ON/OFF lighting control based on occupancy and ambient light levels
Adjustable sensitivity and brightness threshold (5 to 2000 lux)
Optional Green-I GI-REM remote control for commissioning and adjustments
Innovative plug-in screw terminals for quick installation
Supports flexible and rigid cables from 1.5 mm² to 2.5 mm²
Push-button input for manual control integration
Zero-crossing technology for reliable switching and improved LED compatibility
Flush-mounted ceiling installation
IP41 protection rating
IK04 impact resistance

Available Options

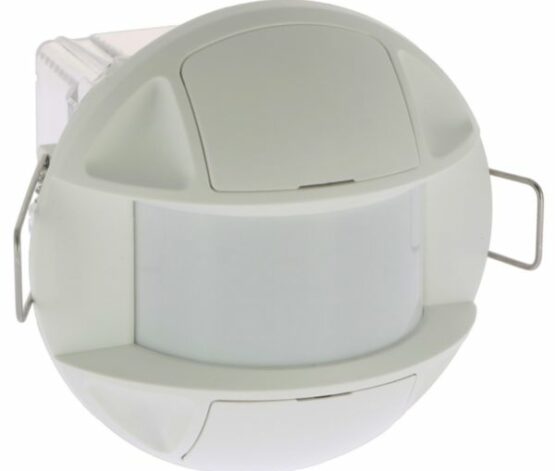

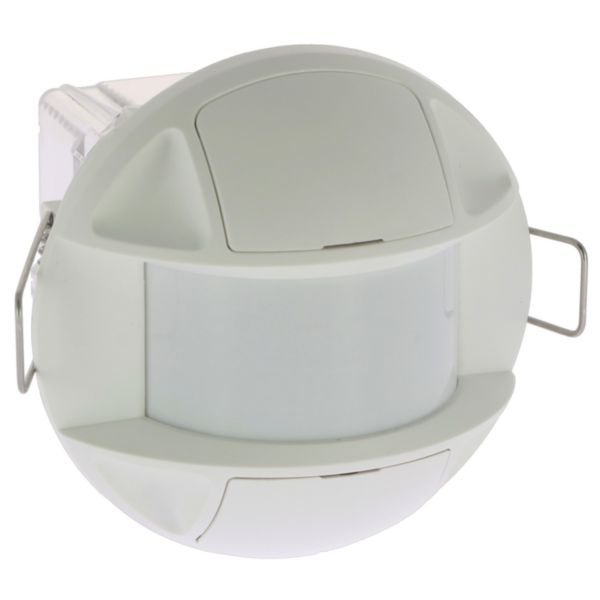

048466: White

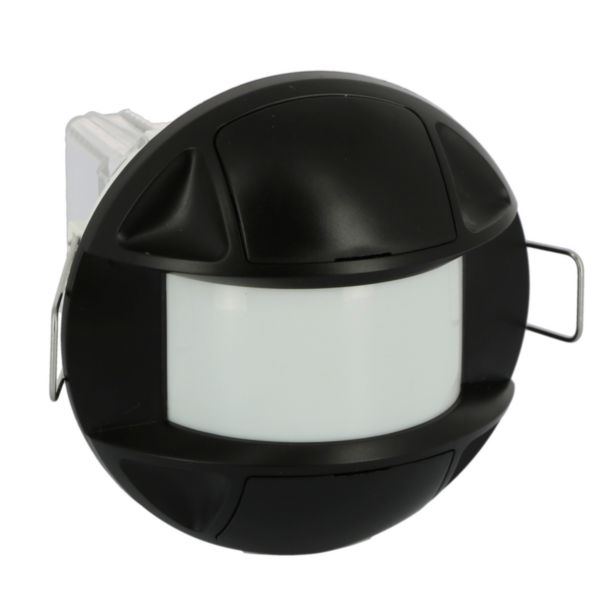

048467 : Black

The Green-i Corridor recessed Presence Detectors are specifically designed for corridors, circulation areas, and passageways requiring extended linear coverage. Featuring a dedicated elliptical lens and 360° passive infrared detection, they provide accurate occupancy detection over long distances while automatically managing lighting according to presence and daylight levels. Combining energy efficiency, easy commissioning, and flexible installation, these sensors are ideal for commercial, educational, hospitality, and public building applications.

Benefits

Optimized detection pattern specifically designed for corridors and circulation areas
Maximizes energy savings through occupancy-based and daylight-responsive lighting control
Ensures safe and comfortable illumination along walkways, hallways, and common areas
Simplifies installation through innovative plug-in terminals and intuitive commissioning tools
Enables fast parameter adjustment via local potentiometers or optional remote control
Reliable LED switching performance thanks to zero-crossing technology
Delivers a clean aesthetic with discreet flush-mounted installation
Supports sustainable building strategies through intelligent lighting automation
