048452, 048456, 048453, 048457

Green-i standard surface presence detectors

Features
  • 360° passive infrared (PIR) presence detection
  • Detection coverage up to 14 m diameter
  • Presence detection area up to 154 m²
  • Automatic ON/OFF lighting control based on occupancy and ambient light levels
  • Adjustable sensitivity and brightness threshold (5 to 2000 lux)

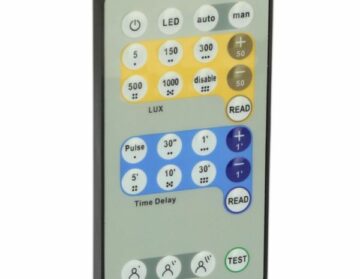

  • Optional Green-I GI-REM remote control for commissioning and adjustments
  • Patented sliding ring concealing configuration controls while maintaining easy accessibility
  • Innovative plug-in screw terminals for quick installation
  • Supports flexible and rigid cables from 1.5 mm² to 2.5 mm²
  • Zero-crossing technology for reliable switching and enhanced LED compatibility
  • IP40 or IP41 protection rating depending on model
  • IK04 impact resistance



Available Options:

  • 048452: ON/OFF, White
  • 048456: ON/OFF, Black
  • 048453: DALI, White
  • 048457: DALI, Black

The Green-i standard surface presence detectors provide intelligent occupancy and daylight-based lighting control for commercial, educational, and office environments. Available with ON/OFF or DALI control, they combine 360° passive infrared detection, advanced daylight harvesting, and simplified commissioning to deliver optimal comfort and energy efficiency. Designed with installer convenience in mind, the range features innovative plug-in terminals, flexible configuration options, and a patented sliding ring that discreetly conceals adjustment controls while maintaining easy access.

Benefits

  • Optimizes energy efficiency through occupancy-based and daylight-responsive lighting control
  • Available in both ON/OFF and DALI versions to suit a wide range of project requirements
  • Simplifies installation with innovative plug-in terminals and intuitive commissioning tools
  • Reduces setup time through local potentiometers and optional remote configuration
  • Ensures reliable operation with LED, fluorescent, and conventional lighting technologies
  • Combines elegant design and functionality through a patented concealed-adjustment system
  • Supports sustainable building strategies through intelligent lighting automation and daylight harvesting
  • Ideal for offices, classrooms, meeting rooms, educational facilities, circulation areas, and commercial spaces

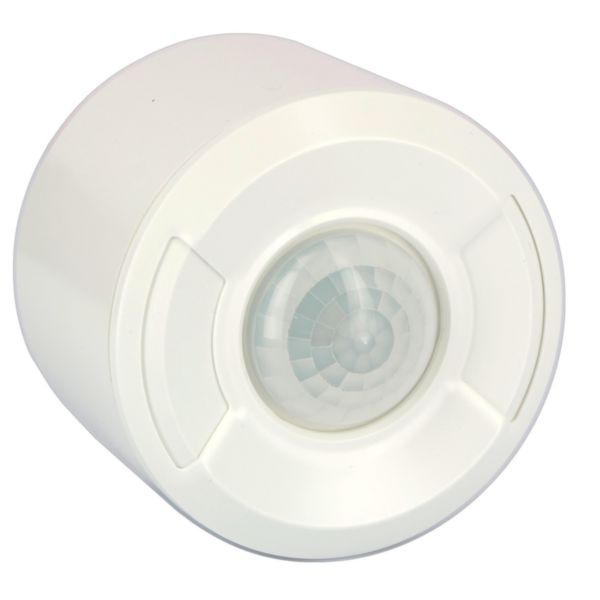

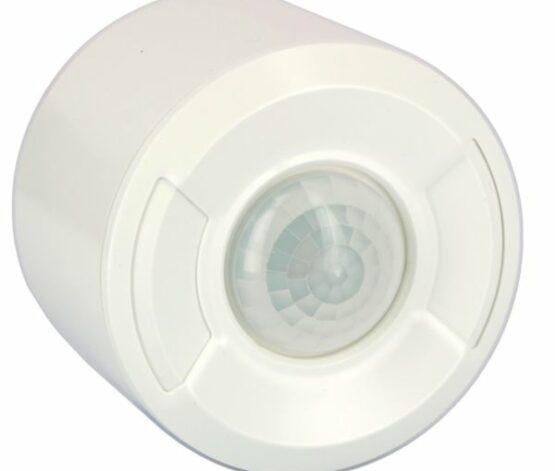

LG-048452 (white)

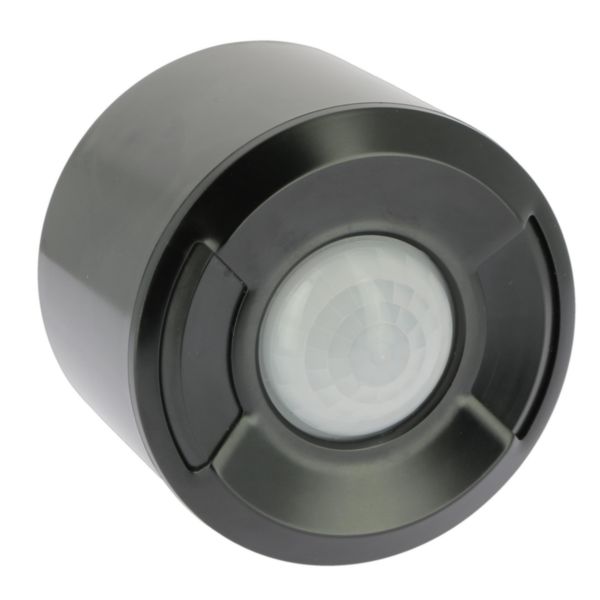

LG-048456 (black)
