048458, 048459

Green-i IP reinforced Presence Detectors

Features
  • Passive infrared (PIR) motion and presence detection
  • Wide detection coverage up to 140 m²
  • Automatic ON/OFF lighting control based on occupancy
  • Constant light control with daylight harvesting functionality
  • Adjustable sensitivity and brightness threshold (5 to 2000 lux)
  • Adjustable sensor head for precise coverage customization
  • Optional Green-I GI-REM remote control for commissioning and configuration
  • Graduated potentiometers for rapid local setup
  • Push-button interface for dynamic control and manual override
  • Innovative plug-in screw terminals for fast and secure installation
  • Supports flexible and rigid cables from 1.5 mm² to 2.5 mm²
  • Staircase lighting controller functionality
  • Surface-mounted installation
  • IP55 protection for outdoor environments
  • IK04 impact resistance



Available Options

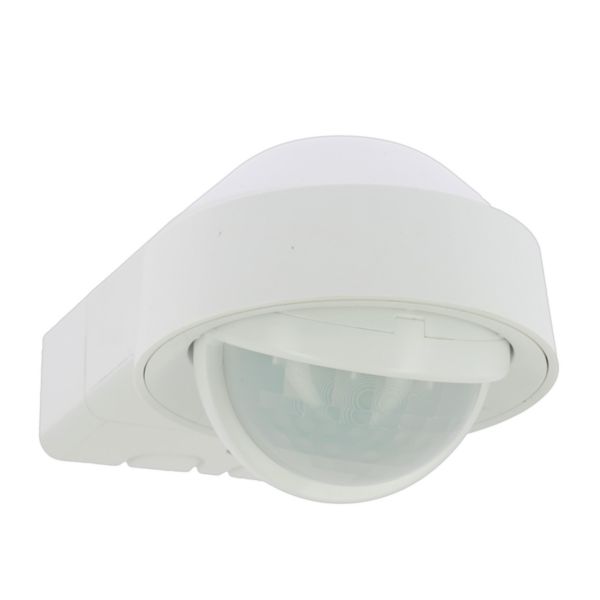

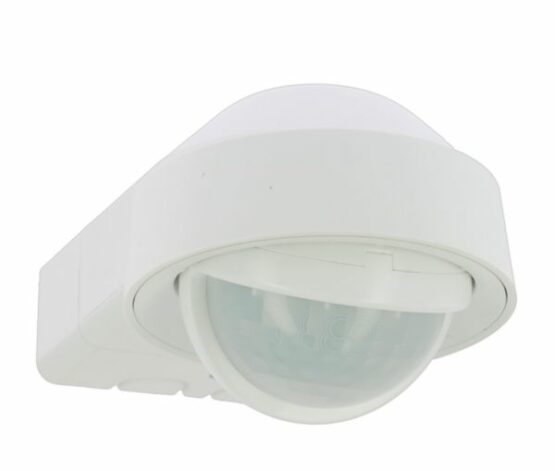

  • 048458: White

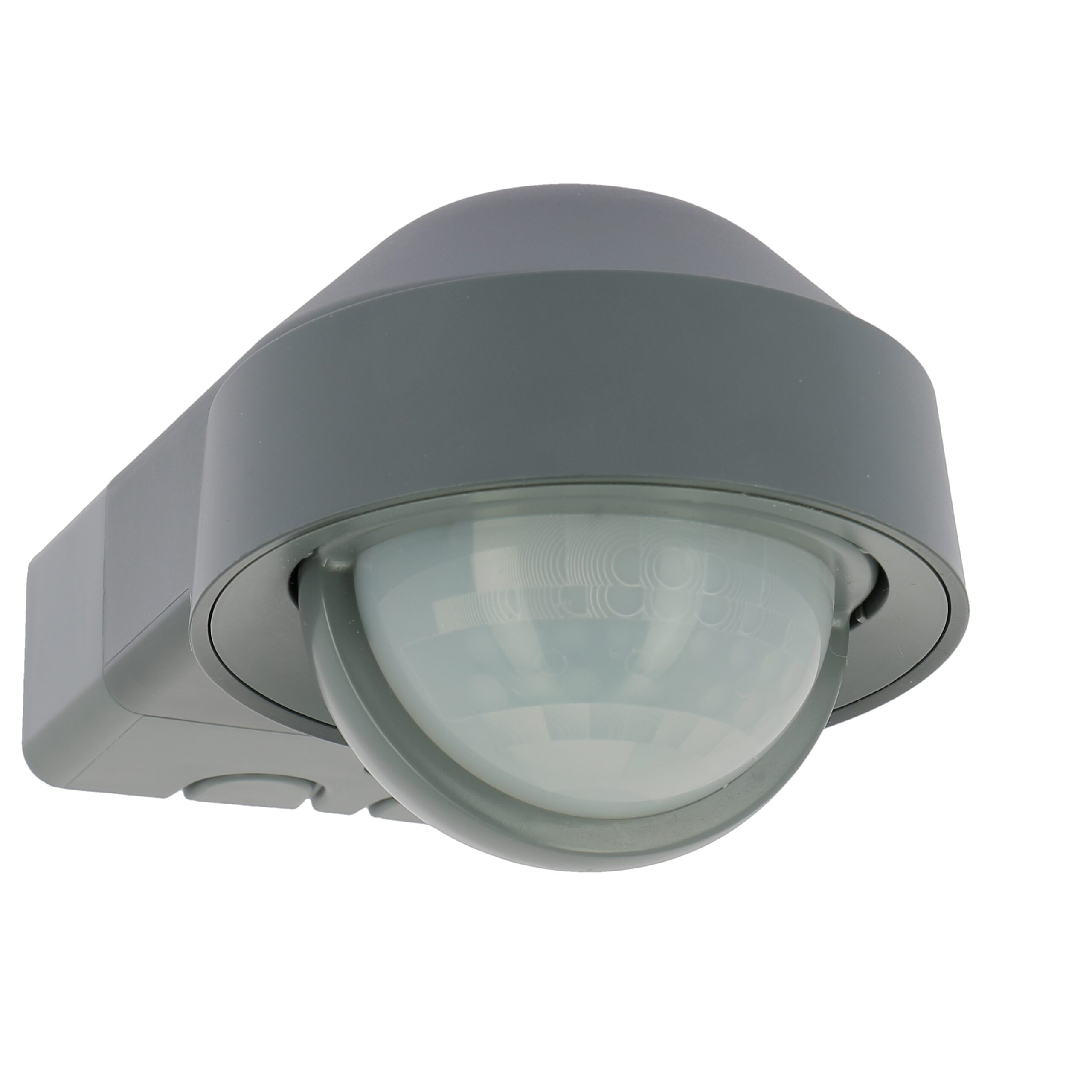

  • 048459: Graphite / Dark Grey

The Green-i IP reinforced Presence Detectors are robust PIR-based occupancy sensors designed for outdoor and demanding environments. Featuring adjustable detection heads, daylight harvesting capabilities, and IP55 protection, they automatically control lighting according to occupancy and ambient light levels, helping optimize energy consumption while ensuring safety and visual comfort around buildings, entrances, pathways, loading areas, and outdoor circulation zones.

Benefits

  • Designed specifically for outdoor and humid environments
  • Automatically adjusts lighting according to occupancy and available daylight
  • Improves safety and visibility around buildings and access routes
  • Optimizes energy consumption through intelligent lighting automation
  • Adjustable sensor head enables precise adaptation to site conditions
  • Simplifies installation through plug-in terminals and intuitive commissioning tools
  • Robust IP55 construction ensures long-term reliability in demanding environments
  • Supports sustainable building strategies through efficient energy management
LG-048458 (white)
LG-048459 (graphite)
