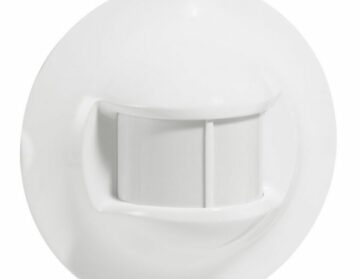

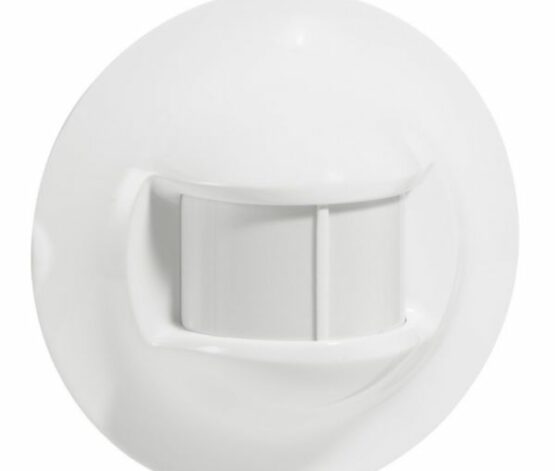

KNX Ceiling Presence Sensor

048919

Features

360° passive infrared (PIR) presence detection
Extended corridor coverage up to 24 m (2 × 12 m)
Automatic lighting ON/OFF control based on occupancy
Constant light control with daylight harvesting functionality
Adjustable sensitivity and brightness thresholds
KNX BUS communication
ETS configurable
Networkable within KNX installations
Low power consumption (0.5 W)

The KNX Ceiling Presence Sensor is specifically designed for corridors, passageways, and circulation areas where long and narrow detection coverage is required. Featuring 360° passive infrared (PIR) detection with an extended reach of up to 24 m (2 × 12 m), it automatically controls lighting based on occupancy and available daylight, helping to improve user comfort while maximizing energy efficiency.

Benefits

Optimized detection pattern specifically designed for corridor applications
Automatically adapts lighting operation according to occupancy and daylight levels
Reduces energy consumption by preventing unnecessary lighting usage
Ensures safe and comfortable illumination in circulation areas
Simplifies commissioning and fine-tuning through ETS software
Fully interoperable with KNX-certified devices from multiple manufacturers
Ideal for energy-efficient smart building projects and long-distance occupancy detection applications
