KNX Input Interfaces

Have a project ? Tell us

002692, 002693

Features

Integration of conventional switches, push-buttons, contacts, sensors, and signaling devices into KNX systems
KNX BUS communication
4 configurable input channels
LED status indication for easy commissioning and diagnostics
Compact design for easy installation

Available Options

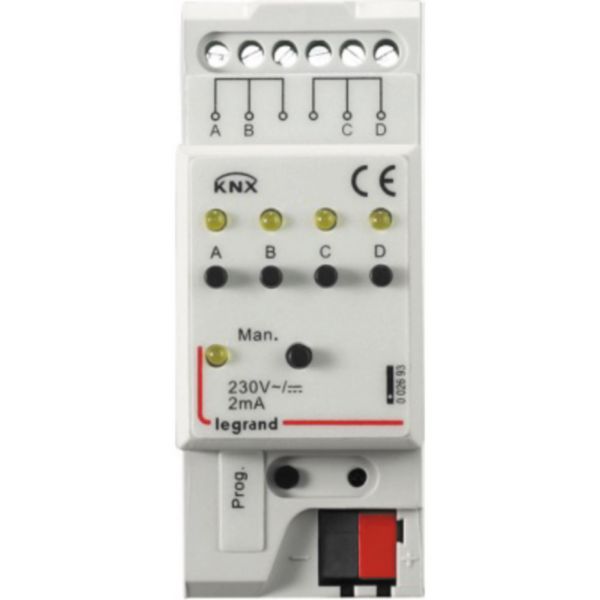

002693:

KNX 4-Input Modular Interface
DIN-rail mounting
2 DIN modules
4 inputs
Input voltage range: 0 to 265 V AC/DC
Powered directly by the KNX bus
LED indication for input status monitoring

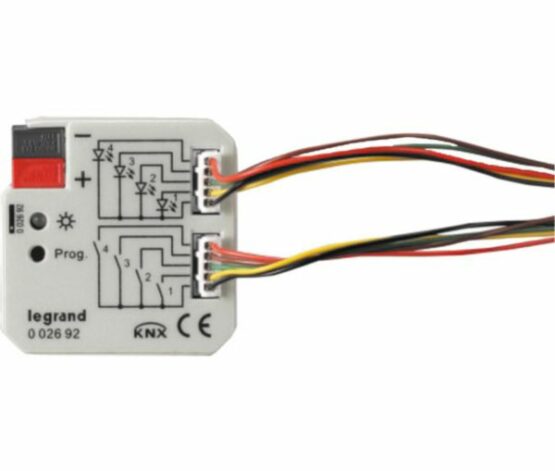

002692:

Mosaic KNX 4-Input Interface
Flush-mounted installation
4 inputs / 4 outputs
Designed for connection of voltage-free contacts
Compatible with Mosaic installations
Direct connection to the KNX BUS cable

The KNX Input Interfaces provide a simple and effective way to integrate conventional switches, push-buttons, contacts, and signaling devices into KNX building automation systems. Designed for both DIN-rail and flush-mounted installations, these interfaces enable the connection of voltage-free contacts or external signals to the KNX bus, extending the functionality of smart building applications while ensuring seamless interoperability with KNX-certified devices.

Benefits

Enables the integration of standard wiring devices into modern KNX installations
Cost-effective way to upgrade existing controls without replacing conventional switches or contacts
Flexible installation options for both distribution boards and room-level applications
Simplifies the connection of alarms, sensors, switches, and push-buttons to the KNX ecosystem
Supports scalable and future-proof smart building solutions
Ideal for residential, commercial, and hospitality projects requiring seamless integration between traditional devices and advanced building automation systems.
