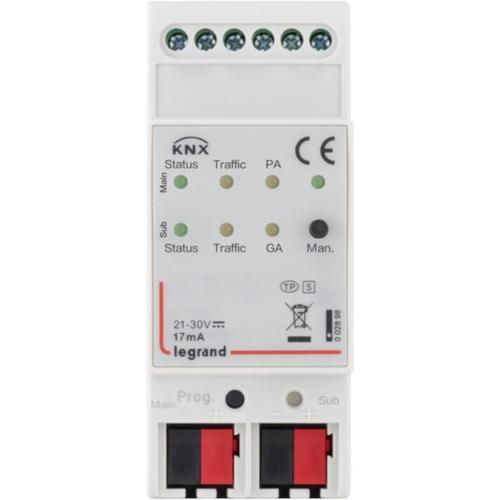

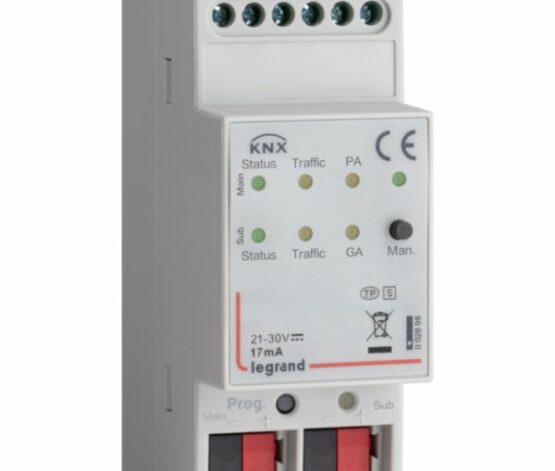

KNX Line Coupler

002898

Features

Operates as a line coupler, backbone coupler, or repeater
Intelligent telegram filtering based on KNX topology and filter tables
Reduces bus traffic and improves network performance
Galvanic isolation between connected KNX lines
Supports extended KNX messages up to 250 bytes
Integrated 6 dual-color LEDs for status indication and diagnostics
ETS5 (or later) configurable
One-button activation of special commissioning functions
DIN-rail mounting
KNX standard compliant
Compact 2-module design

The KNX Line Coupler is designed to optimize communication between KNX lines and areas by intelligently filtering telegram traffic and reducing bus load. Configurable as a line coupler, backbone coupler, or repeater, it provides a flexible solution for building scalable and efficient KNX installations while ensuring reliable data transmission and network segmentation.

Benefits

Optimizes KNX network performance by minimizing unnecessary telegram traffic
Simplifies the creation of scalable multi-line and multi-area KNX architectures
Provides enhanced diagnostics and troubleshooting through visual LED indicators
Flexible deployment using the same hardware as a line coupler, backbone coupler, or repeater
Supports advanced KNX applications requiring larger telegram sizes
Improves system reliability through galvanic isolation between network segments
Ensures interoperability with KNX-certified devices from multiple manufacturers
Applications: building automation network expansion, large commercial, hospitality, and residential KNX installations
