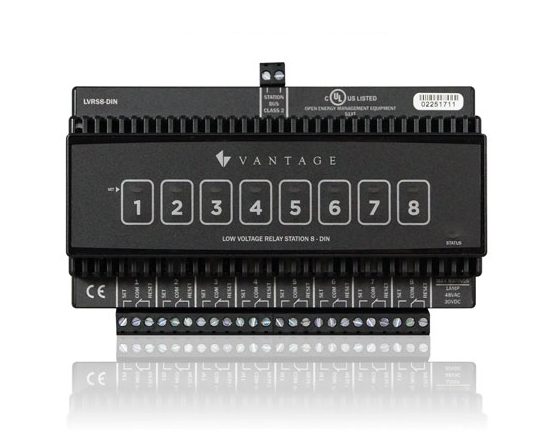

LVRS8-DIN

DIN Low Voltage Relay Station

Features
  • Max 1A/48VDC
  • Manual actuator button
  • Single pole, double throw
  • Latching relays
  • Doesn’t need external line feed
  • 9 DIN modules wide

The DIN Low Voltage Relay Station is a powerful control point for systems or devices that accept commands through relays or contact closures. A DIN Low Voltage Relay Station includes eight single-pole double-throw relays to control devices such as draperies, pumps, garage doors, lifts, screens, pool covers, sprinklers, showers, baths, and security systems. Each relay corresponds to an individual button on the front of the unit, which allows the connected device to be manually switched. The individual relays latch to retain the last state in the event of a power interrupt. Low Voltage Relay Stations easily install on standard 35 mm DIN rails. The stations communicate with the master through a two-wire bus using either screw terminals or a small connector on the side of the unit.
