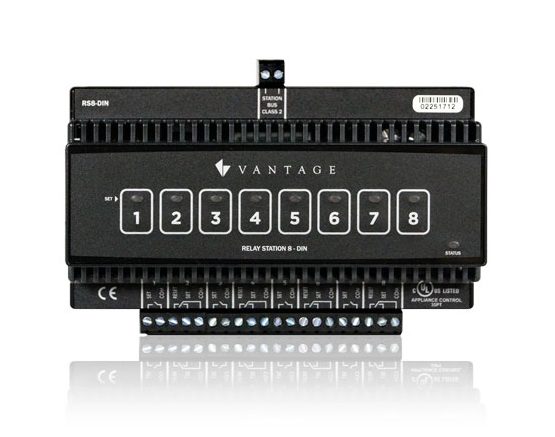

RS8-DIN

DIN High Voltage Relay Station

Features
  • Accepts voltage from 0 to 270VAC
  • Max 10A/load channel
  • Manual actuator button
  • Single pole, single throw
  • Single pole, double throw
  • Latching relays
  • Ideally for control up to 4 shades, blinds etc
  • 9 DIN modules wide

The High Voltage Relay Station provides relay functionality for up to eight individual loads. Four single-pole single-throw and four single-pole double-throw relays provide hardware interlock installations (fe motor control). Each of the eight relays are designed to handle up to ten amps of either high or low voltage current. Actuator buttons allow the connected relays to be manually toggled. Relays latch in place retaining its last state in case of a power interrupt. DIN Relay Modules easily install on standard 35mm DIN rails. The station communicates with the main controller through a two-wire bus using either screw terminals or a small connector on the side of the unit.

Other
Products

Downloads

Cut Sheet

787 KB
