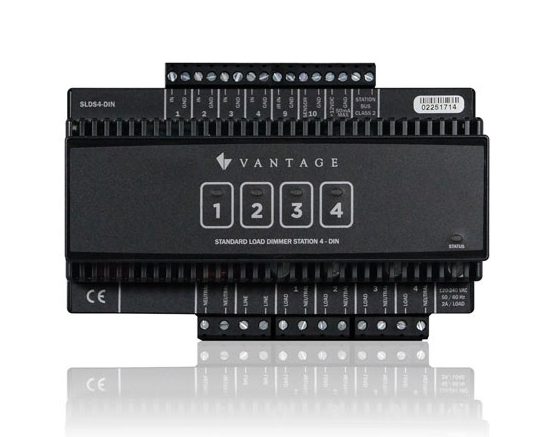

SLDS4-DIN

DIN Standard Load Dimmer Station

Features
  • Four loads
  • Max 640W/load channel
  • Max 1920W/station
  • Incandescent & magnetic transformers
  • Fuse protection per load channel
  • 6 contact inputs
  • Leading edge (forward phase) support
  • 9 DIN modules wide

The Standard Load Dimmer Station is used to incrementally expand the control and dimming capacity of the Vantage automation and lighting control system. It is designed to easily install on standard 35 mm DIN rail and has connections to control in total up to 1920W at 240VAC. The dimmer station is powered from a local line feed and can communicate with a Vantage master through a two-wire bus or a small connector on its side to orchestrate complex and elegant lighting scenes. Each load can also be independently controlled from the four buttons on the front of the housing. On the top of the Standard Load Dimming Station are six contact inputs used to receive input from buttons, motion sensors, door contacts, stress sensors, and more. Connections five and six can also be used to connect a Vantage remote IR receiver and a Vantage sensor respectively.
