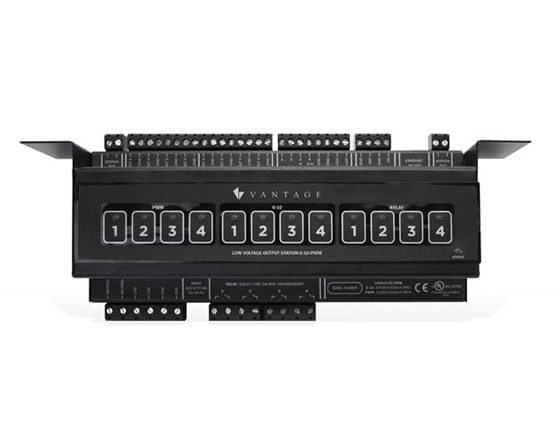

LVOS-0-10-PWM

Low Voltage Output Station

Features
  • 4 LVOS loads
  • 4 PWM loads
  • 4 High voltage relays
  • Manual actuator button
  • 4 Dry contact inputs
  • LVOS output 0-10V / 100mA
  • PWM output 12V
  • PWM 100mA/channel / 400mA total
  • Powered by 220VAC
  • 2 Override inputs
  • Ethernet or station bus
  • LVOS-0-10-PWM: Vantage metal enclosure included
  • LVOS-0-10-PWM-P: without enclosure
  • Optional Vantage auxiliary enclosure  – IAUX-2 up to 6 stations per enclosure or  IAUX-4 up to 10 stations per enclosure

The 0-10 PWM Low Voltage Output Station is used for the control and automation of fluorescent loads or LEDs requiring either 0-10 or PWM for dimming control. Each LVOS features four 0-10 outputs, four PWM outputs and four high voltage relays. The LVOS is firmware upgradable in the field through its ethernet bus or station bus inputs. It has the capability of supporting four dry contact inputs and two additional override inputs.. The dry contact inputs can be used with motion sensors, light sensors, pressure sensors, IR input, magnetic switches and more.
