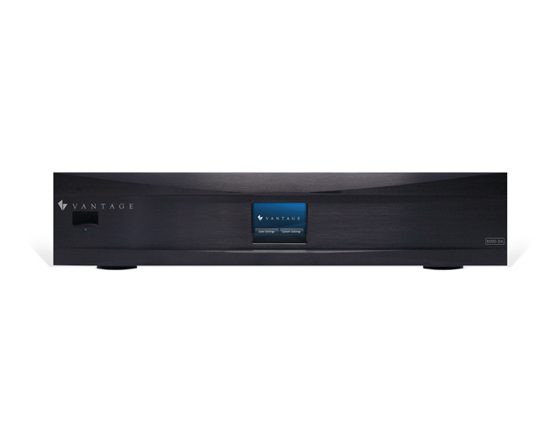

VA-AX-1250

Digital Distributed Audio Amplifier

Features
  • 8 zone outputs
    • 6 power stereo zones @ 55 Watts into 8 ohms, 75 Watts into 4 ohms
    • High efficiency digital amplifiers with overdrive limiting
    • 2 stereo pre-amplifier zones with full control
    • expandable up to 96 zones
    • Zone linking capabilities
  • 13 sources
    • 1-8 analog stereo or digital inputs
    • 9-12 digital or optical inputs
    • 13 airplay (selecting this from your apple device will make the VA-AX-1250 automatically switch over to source 13);
  • Analog input gain (level) setup adjustment (by way of software)
  • Each input has a delay setup adjustment (by way of software)
  • Two doorbell inputs
  • Resistive touchscreen interface on front panel
  • Output short circuit, thermal and hard clipping protection
  • ​Bass, Treble, Balance and Loudness per zone
  • Webpage for fast set-up, fine tuning (7band Eq) and diagnostics
  • Vantage Ethernet Bus control

The VA-AX-1250 is one of the most advanced, dedicated multi-room distributed audio amplifiers on the market. Each 1250 has independent or linked volume control on each of eight amplifier/pre-amplifier zones and can accept any digital or analog source, including Airplay, DVD and Blu-Ray players, media servers, CD players, cable and satellite boxes, digital music players, and more. Additional VA-AX-1250 may be interconnected providing up to 96 zones of audio and vastly simplifies installation. Like all other Vantage products, the VA-AX-1250 is designed to maximize control, simplify functionality, and expedite installation. The amplifiers are protected against short-term output shorts and have three progressive levels of thermal protection. Vantage products are built to the highest standards of quality and reliability.

Downloads

VA-AX-1250 cutsheet

Reference
projects
