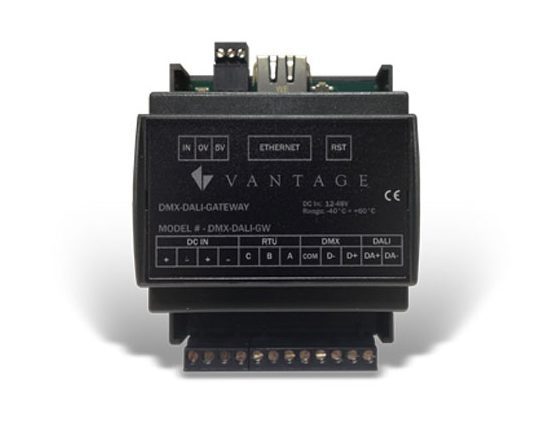

DMX-DALI Gateway


Max. 512 channels in total
Max. 512 DMX channels
Max. 64 DALI channels (max 20 recommended)
12VDC-45VDC input voltage
RJ45 10/100Mbit ethernet connection
External software can be used to monitor and/or control the channels

for dimming and multiple channels DALI 2.0 gateway recommended

The Vantage DMX-DALI Gateway simultaneously processes information to/from one or more DMX and/or DALI devices, and provides a full DMX universe of 512 channels as well as 64 channels of DALI control. The information is transmitted via Ethernet, in controlled packets, to the Vantage Controller which acts as the central control point. The Vantage Controller conversely transmits controlled packets back to the DMX-DALI gateway to be distributed to each connected bus. The Vantage controller manages the information, load status and levels, making the interface simple to use.

Designed to control a DMX512 lighting bus from the Vantage system
Designed to control a DALI lighting bus from the Vantage system
Clips on to a 35-mm DIN rail
Control your light fixtures with the Vantage interfaces such as keypads, touchscreens, motion sensors, timers, ...



Cut Sheet

753 KB
