DALI 2.0 GW

DALI 2.0 Gateway

Features
  • Controls DALI 2.0 light intensity and colour temperature ( for example Human centric lighting control)
  • 4 Dali lines of 64 addresses each
  • Dali set-up and diagnostics tool build in
  • External power supply included
  • Dali power supply needed per line used
  • 12 DIN modules wide
  • Fully tested Infusion driver available

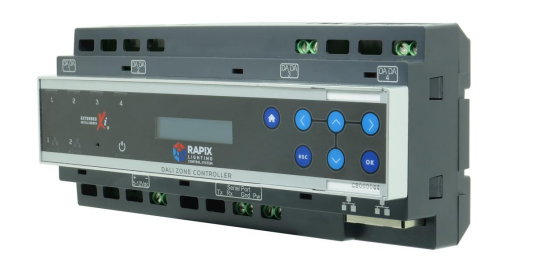

The DALI 2.0 GW Zone Controller is a powerful DALI Application Controller, acting as an embedded Ethernet / DALI controller as part of the RAPIX DALI Lighting Control System.

The Zone Controller supports control functions, scheduling, and the seamless joining of individual DALI lines in a building.

Each Zone Controller can connect up to four physical DALI Lines. Zone Controllers communicate to each other and external systems using Ethernet networking. The Zone Controller software allows DALI Devices and DALI Groups across any DALI Line to be linked together to form DALI Xi Zones and Scenes that suit the building application.
