KNX HVAC Controller

002890

Features

Dedicated KNX controller for HVAC and fan coil applications
Compatible with 2-pipe and 4-pipe fan coil units
Support for 0-10 V and ON/OFF valve control
Compatible with brushless motors and 3-speed fan motors
2 configurable 0-10 V outputs
5 relay outputs
Maximum switching current up to 16 A
Maximum output current of 10 A
Integrated valve protection function
Manual override switch
KNX bus communication
Bus module detachable for easy installation and maintenance

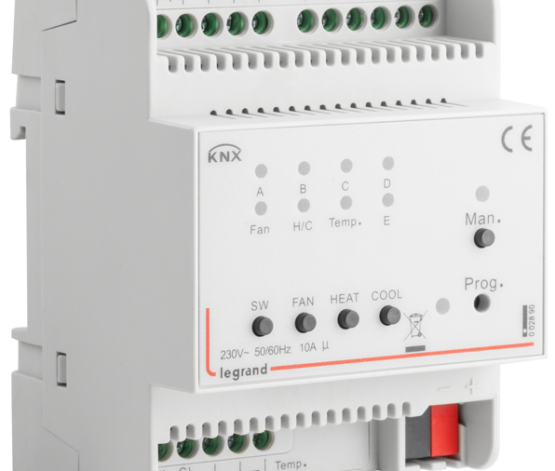

The KNX HVAC Controller is a versatile DIN-rail-mounted device designed for the management of fan coil units (FCUs) and heating/cooling systems within KNX building automation installations. Supporting both 0-10 V modulating control and switching outputs, it enables precise climate regulation while ensuring compatibility with a wide range of HVAC applications, including 2-pipe and 4-pipe systems.

Benefits

Provides precise and reliable HVAC control within KNX installations
Supports a wide range of heating and cooling applications from simple fan coils to advanced climate control systems
Combines modulating and switching outputs in a single controller, reducing installation complexity
Enables optimized comfort and energy efficiency through intelligent KNX automation
Flexible solution suitable for residential, hospitality, office, and commercial projects
Seamlessly integrates with KNX thermostats, control panels, and building management systems
Future-proof architecture based on the open KNX standard for maximum interoperability and scalability
