LG-002672; LG-002674; LG-002676; LG-002678; LG-002680

KNX on/off modules

Features



002680 : 4 outputs

002672 : 8 outputs

002674: 12 outputs

002676: 16 outputs

002678: 20 outputs

  • All-in-one multi-application controller equipped with 8-12-16 or 20 outputs capable of performing multiple functions including:
    • ON-OFF lights control
    • Control of shutters and curtains
    • Control of controlled sockets
    • Control of fan coils with 2 and 3 point valves
  • Suitable for managing resistive, capacitive, inductive loads and fluorescent lamps
  • Several functions: staircase, external logic, internal logic, priority, threshold, operating hour, ..
  • Each output can be controlled via traditional electromechanical devices or KNX devices, Configuration via ETS software
  • Bus connection via red-black KNX connector.
  • Power supply SELV 29V d.c from KNX bus (< 10mA).

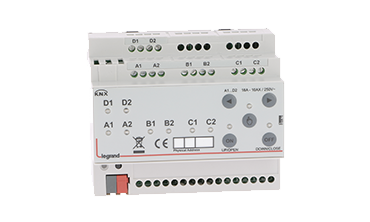

LG-002672
LG-002674

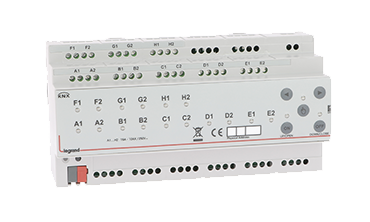

LG-002676

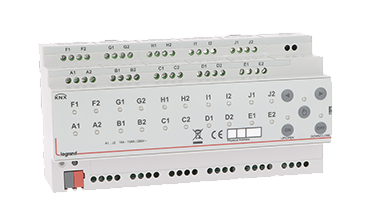

LG-002678
LG-002680
