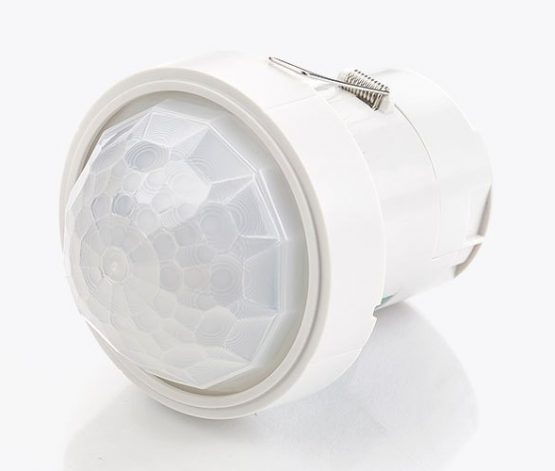

High bay/high level, Flush mounted, PIR presence, IP40, detectors

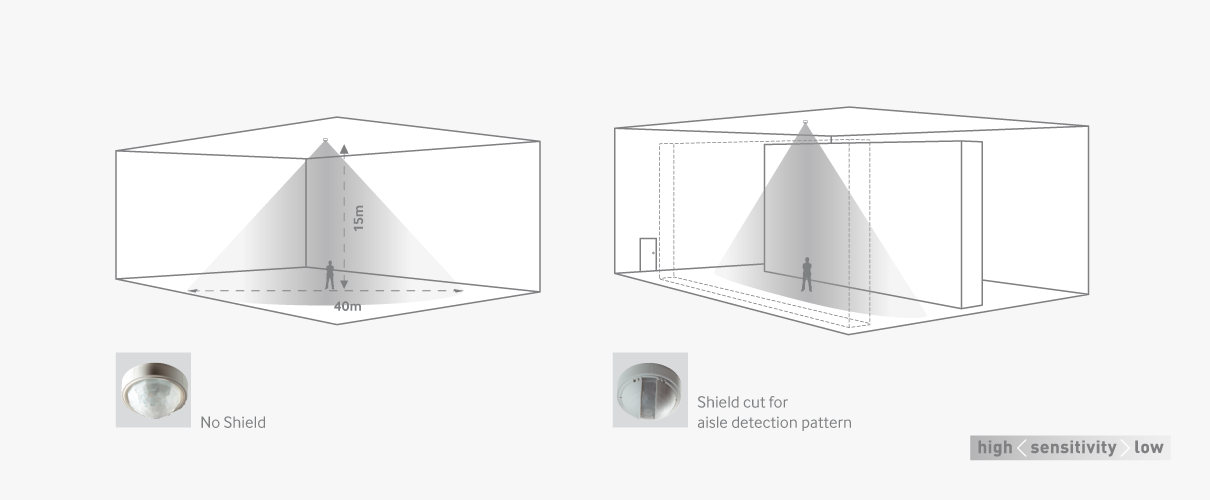

  • Groundbreaking detection range up to 40m at a 15m mounting height
  • Maximum mounting height up to 20m dependent on operating parameters
  • Unique lens technology – high sensitivity within the detection range
  • Ideal for high bay applications, including warehouse lighting control
  • IP40 rated

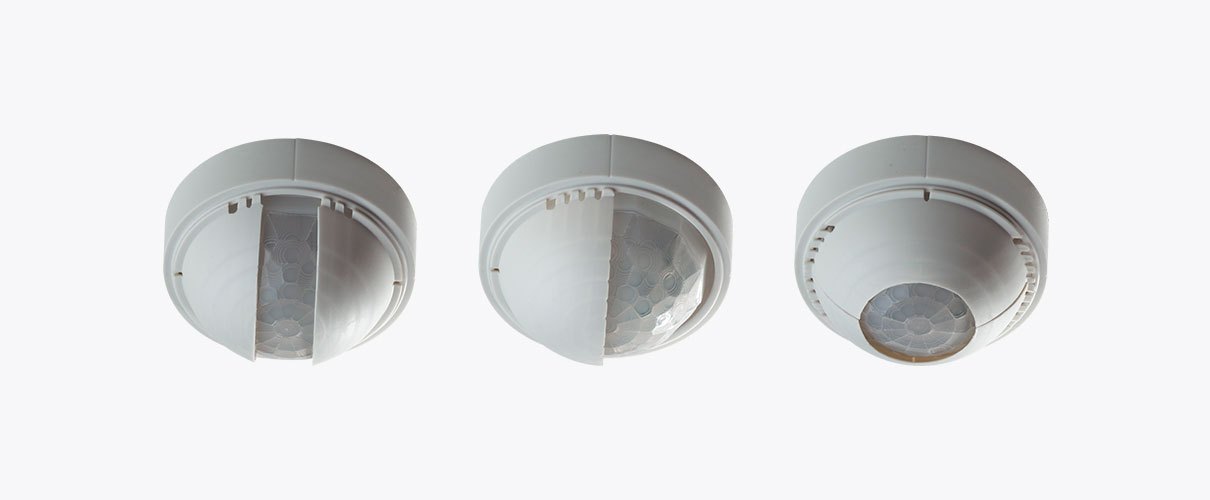

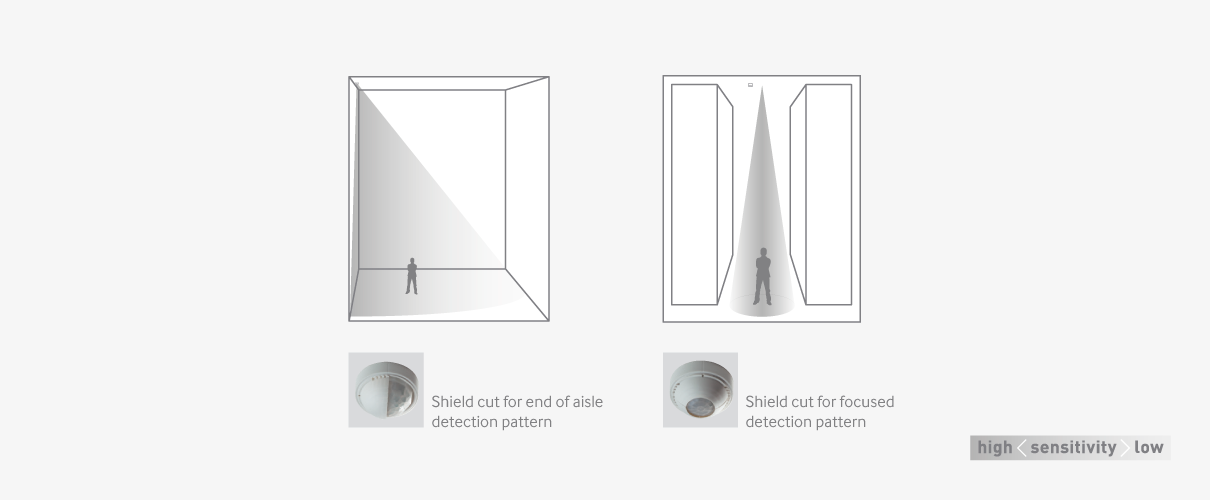

  • Supplied with adjustable masking shields to tailor detection zones
  • Verify feature reduces false triggering by ensuring detection from more than one of the internal sensors
  • All functionality is fully programmable using either the UHS5 or UNLCDHS handsets
  • UK and international patents applied for
  • 5 year warranty included
  • Manufactured in the UK
  • Available options:
    • PRM – Premium 1CH
    • AD – Analogue dim
    • DD- Digital Dim (Dali/Dsi)
    • KNX

The EBDHS range of increased performance PIR presence detectors is developed for high bay lighting control in areas with demanding spaces and increased mounting heights. They are responsive to the constant shift of an organisation's lighting needs by being programmable and adjustable to produce an exceptionally accurate detection beam.

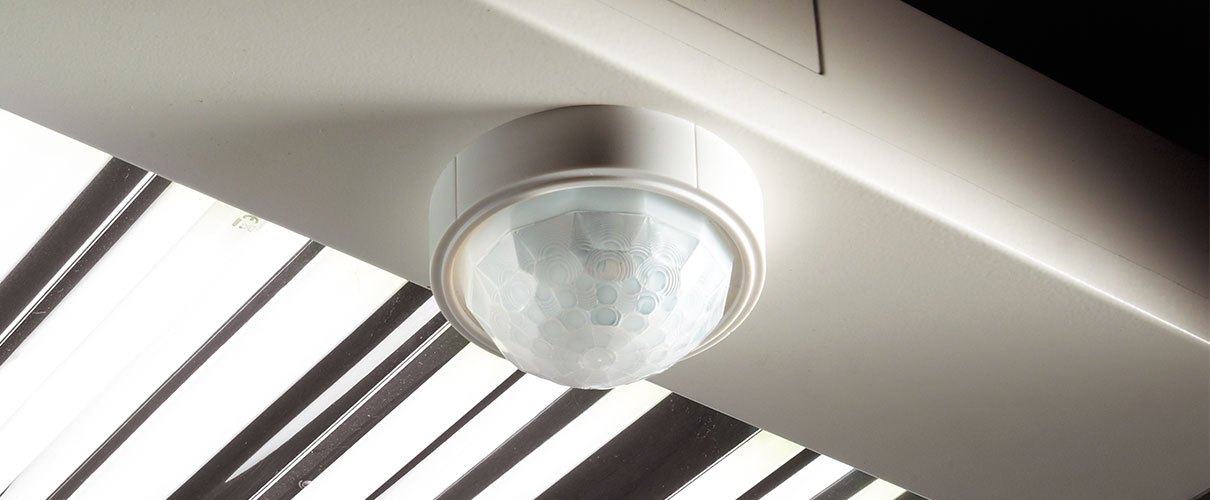

Ideal for warehouse lighting control.

Three models are available: premium (PRM), direct dim (DD), and analogue dim (AD) all of which will switch a wide range of luminaires. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1–10V dimming ballasts.

EBDHS is also available in low temperature -30 versions.
