Project Challenge

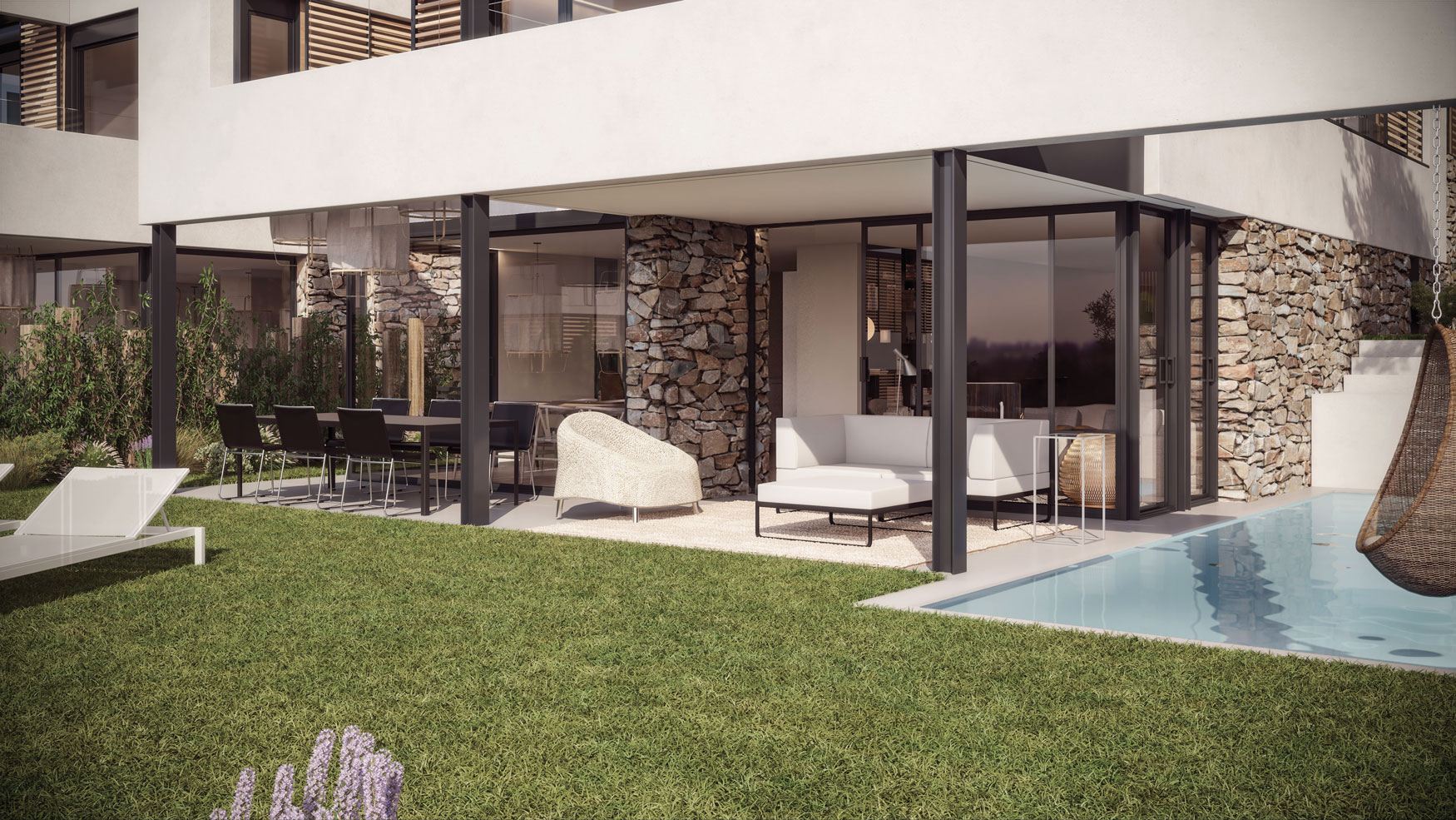

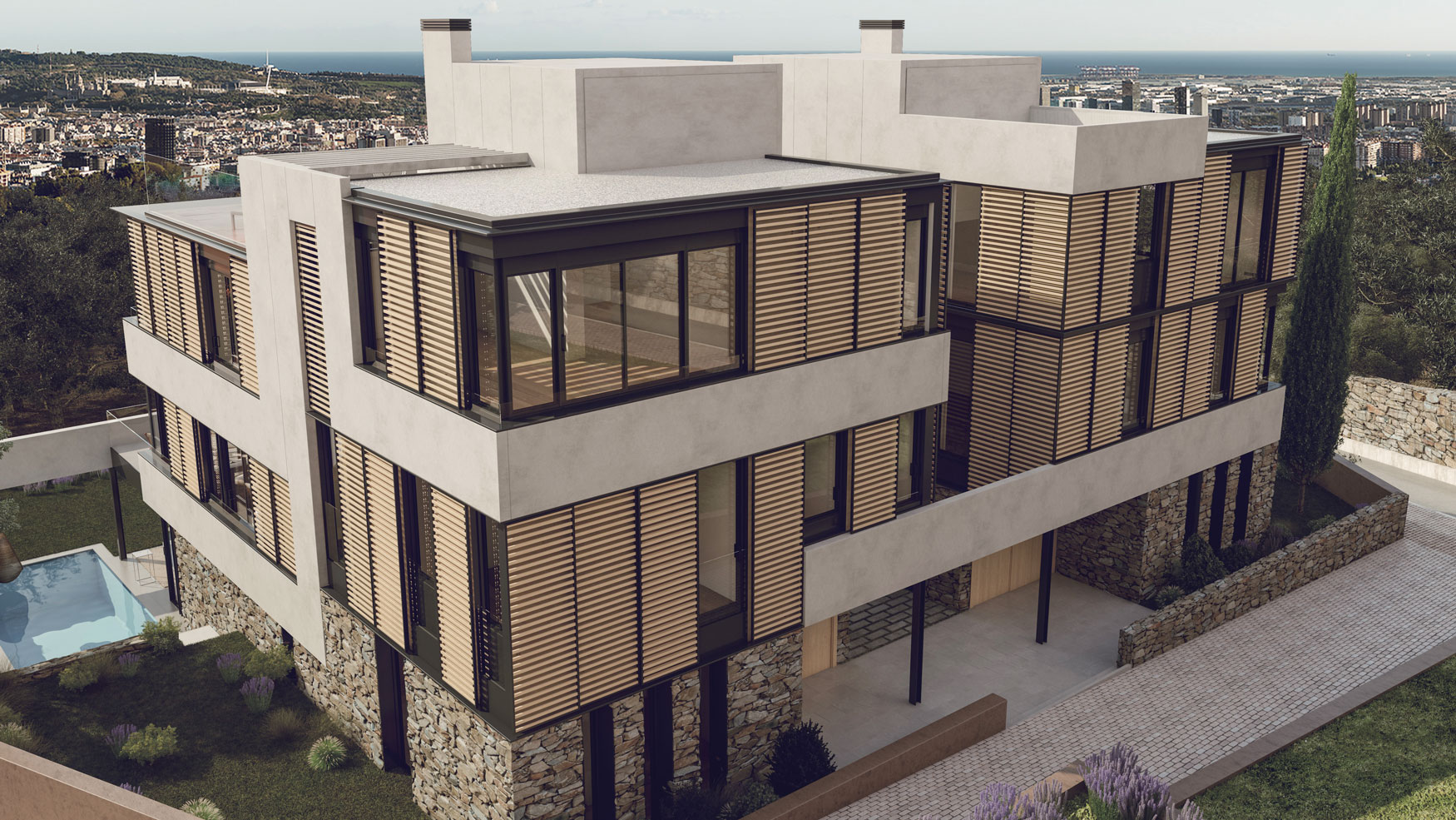

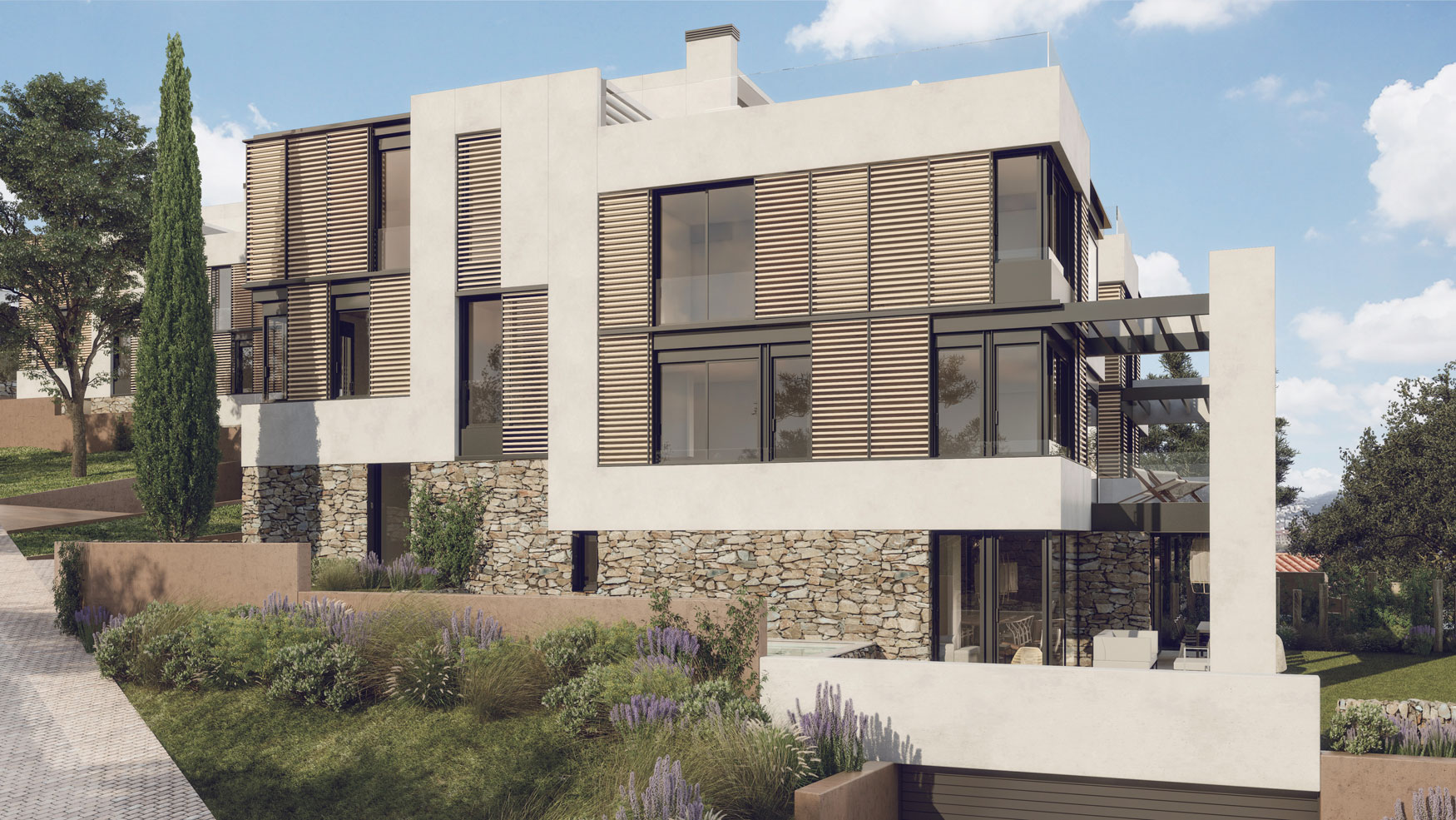

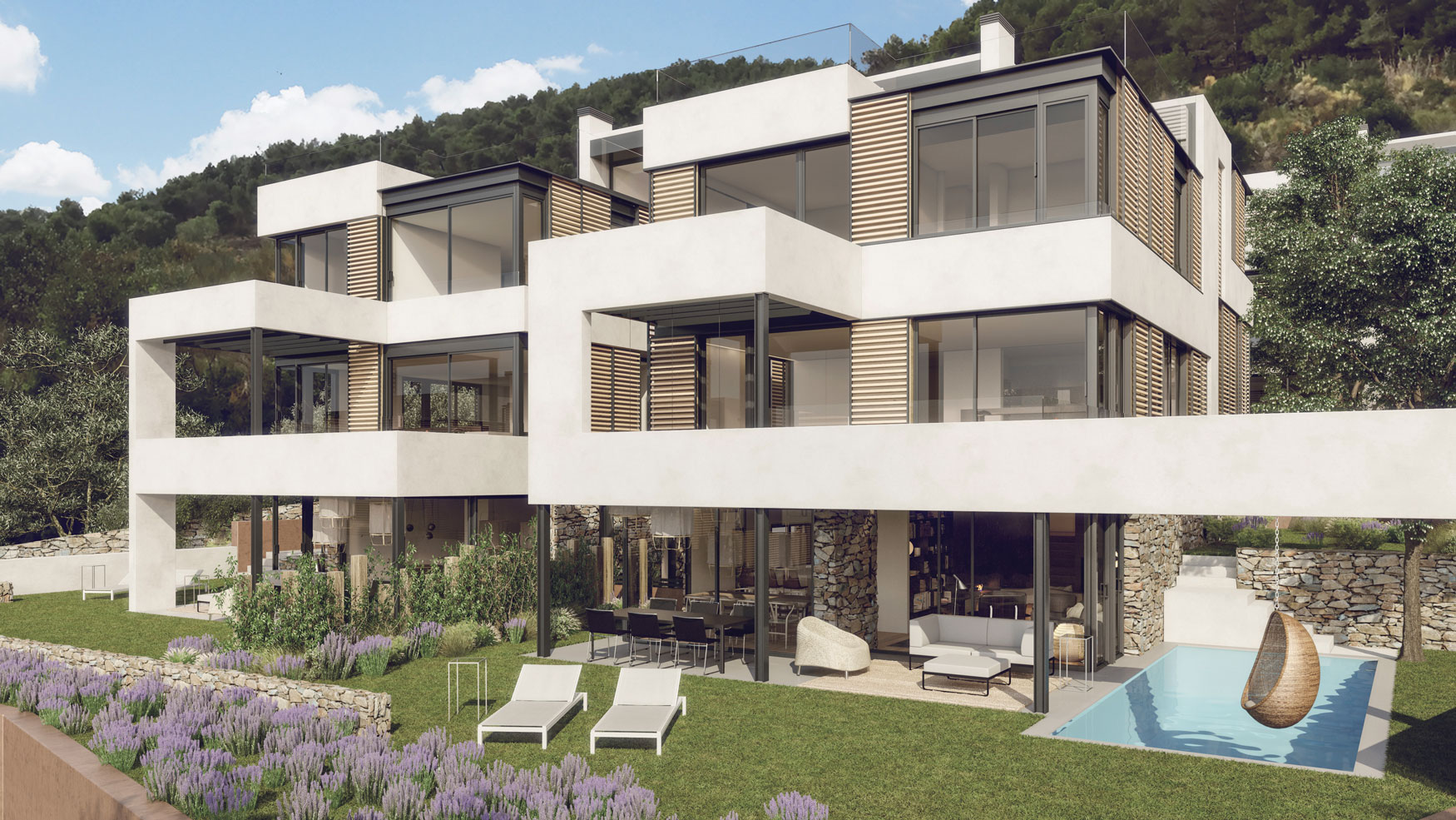

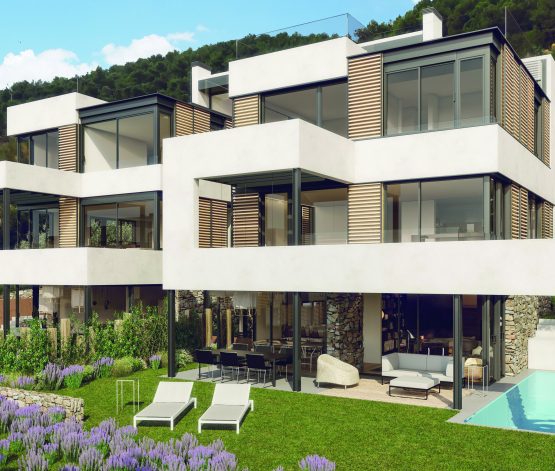

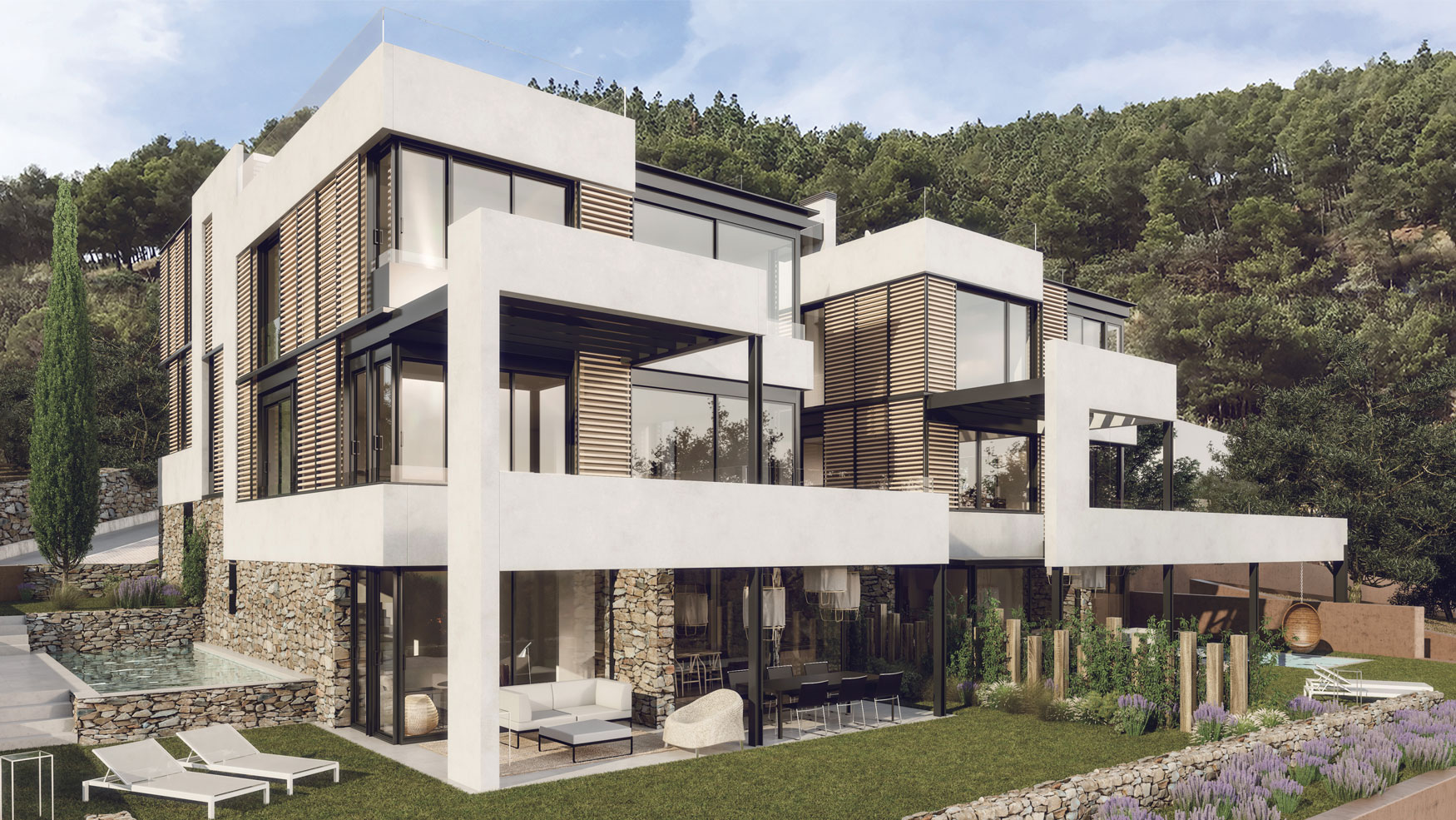

In these 6 single-family villas project there was a need to manage in each one of them the control of different functions within the home system, such as: 56 blind and shutter motors, 12 underfloor heating zones and 9 Mitsubishi Electric air conditioning zones, flood, smoke and gas technical alarms, intercom inside the houses and video door entry communication with the external units and of course the lighting and general scenarios that needed to be integrated as well.

The Solution

Thanks to the beautiful design provided by the MyHomeUp system with the Living Light series from BTicino, we could integrate both aesthetically and functionally the different challenges posed by the project. By using the LN4661M2 actuator, each blind and shutter can be controlled independently, allowing also to generate groups by rooms and floors. 4 button user interfaces have been installed to perform the light and scenario functions as well as the floor and house general on/off.
With the Bticino probes the temperature is measured individually in the different zones. The relay actuators take the control of the heating, where the cooling is done via driver manager (F459) and a driver license. This way the user can keep on using the traditional easy control options in his project (locally and also from remote connection). It is exactly for this driver support and commissioning that Legrand Integrated Solutions team stepped in and offered their intervention and expertise. During this Covid19 period they managed to commission and test this installation in Spain by remote connection directly from their home offices in Belgium.
Safety was just as important in this project and this was taken care of by a general lighting protection but also by the use of the F481 and F483 integration interfaces for implementation of technical flood alarms in wet areas, gas detection in the kitchen and boiler room, as well as smoke detection and water pump status. MyHomeServer1 server enabled the integration of the entire system into a one single app to ensure the owners a more comfortable and enjoyable daily home stay.

Project Benefits

  • Elegant and polished design
  • High functionality
  • Easy customization
  • Simplified system programming according to the needs

PROJECT DETAILS

  • Application Type: Residential (6 Single-Family Villas)
  • Location: Calle Saüc 12, Barcelona
  • Date: September 2020
  • Promoter: Bonavista Developments
  • Architect: Damian Ribas Architecture
  • Engineering: Ecoinstec Enginyeria
  • Electric Installer: Elecnor
  • System Integrator: Sumtel Management and Telecommunication



Download the full case study here.
