EBDSM

Compact, surface mounted, ceiling, PIR presence/absence detectors

Features
  • Self contained unit
  • Easy to install via back plate
  • Infrared programmable
  • IP40 (no gasket); IP54 when fitted with gasket
  • The optional infrared remote handset allows the user to override the set up.
Available options:
  • PRM – 1 channel
  • AD – Analogue dim
  • DD- Digital Dim (Dali/Dsi)

These compact surface mounted PIR detectors provide automatic control for lighting, heating and ventilation loads. No external control boxes are required as the unit is self contained.

Three models are available: premium (PRM), direct dim (DD), and analogue dim (AD) all of which will switch a wide range of luminaires. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1–10V dimming ballasts.

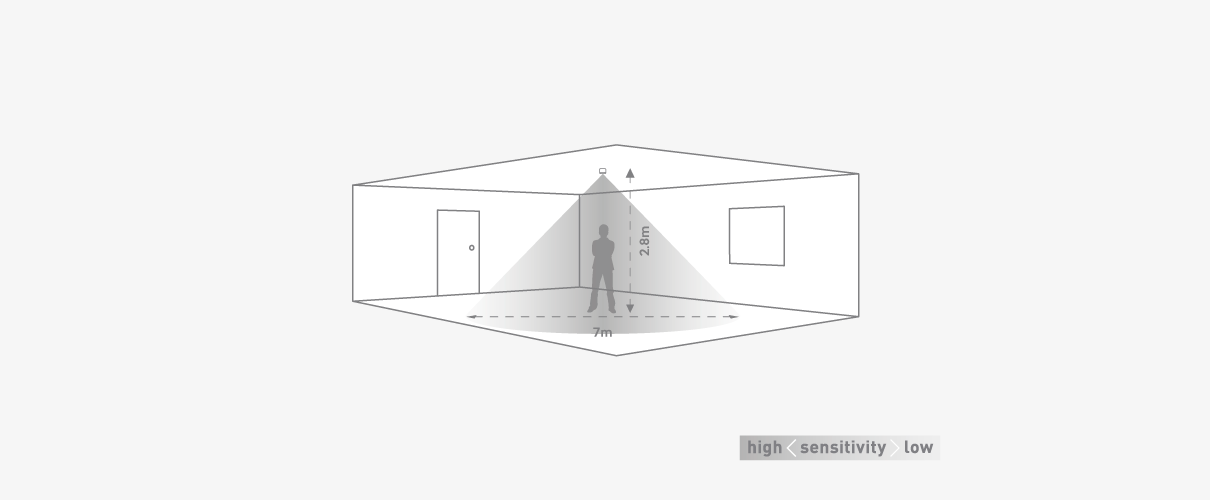

ebdsm-range
ebdsm-main_1

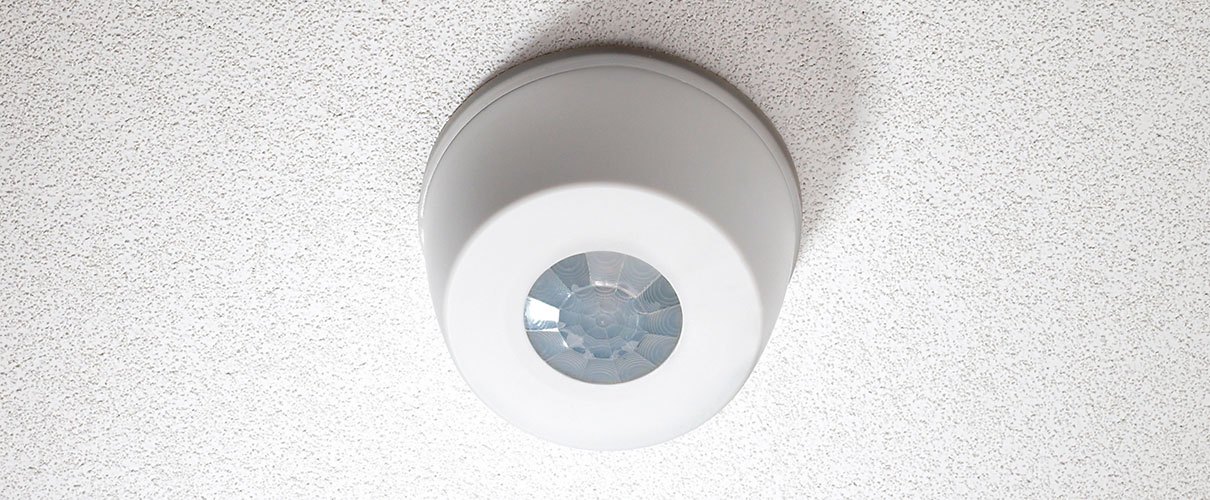

ebdsm-main_2

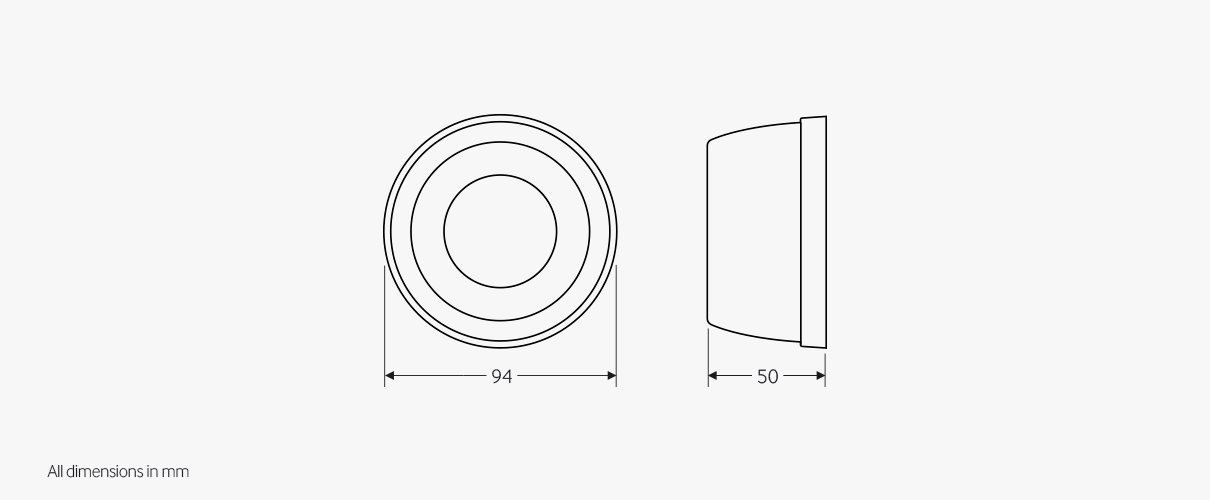

ebdsm-dimensions
