Green-i Corridor surfacemount presence detectors

048468, 048469

Green-i Corridor surfacemount presence detectors

Features

360° passive infrared (PIR) presence detection
Extended detection coverage up to 24 m frontal reach and 5 m lateral reach
Coverage area up to 120 m²
Automatic ON/OFF lighting control based on occupancy and ambient light levels
Adjustable sensitivity and brightness threshold (5 to 2000 lux)
Protective shutters concealing adjustment controls while maintaining easy access
Supports flexible and rigid cables from 1.5 mm² to 2.5 mm²
Push-button input for manual control and overrides
Zero-crossing technology for reliable switching and enhanced LED compatibility
IP40 or IP41 protection rating depending on model
IK04 impact resistance

Available Options

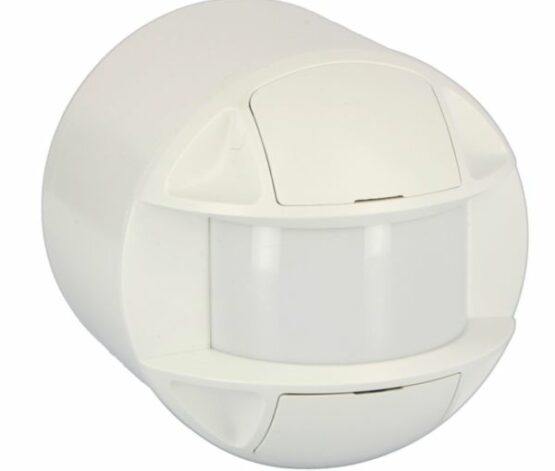

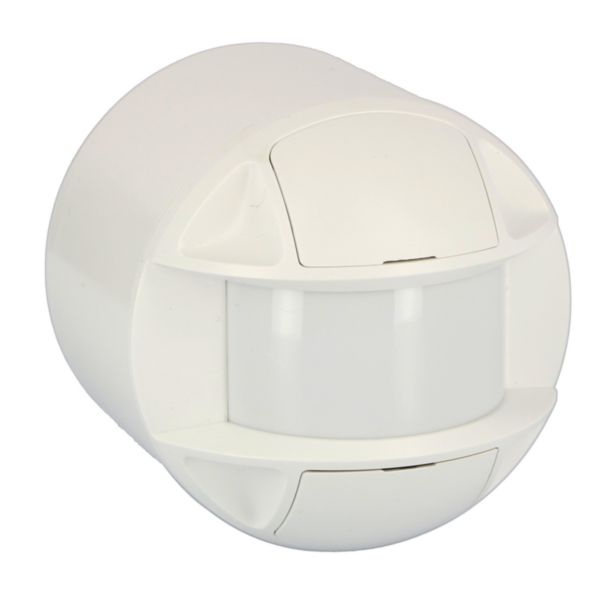

048468: White

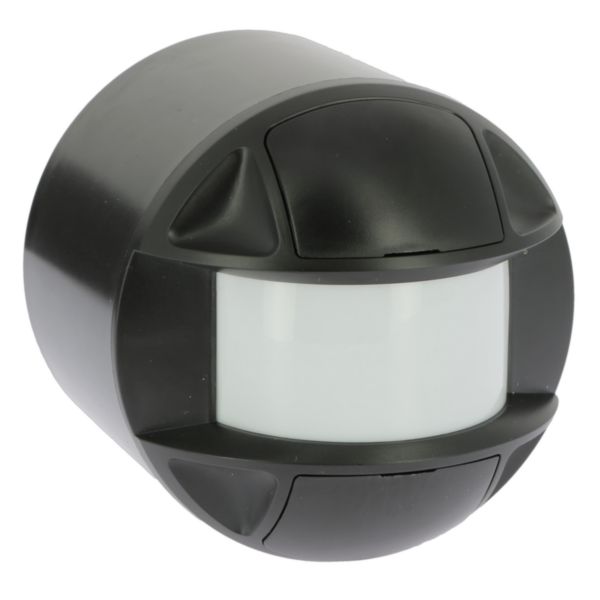

048469: Black

The Green-i Corridor surface presence detectors are specifically designed for corridors, passageways, and circulation areas requiring extended linear detection coverage. Featuring a dedicated elliptical lens and 360° passive infrared technology, they provide reliable occupancy detection across long and narrow spaces while automatically controlling lighting according to presence and ambient daylight levels. Available in recessed and surface-mounted versions, the range combines energy efficiency, easy commissioning, and flexible installation for commercial, educational, hospitality, and public building applications.

Benefits

Optimized for long and narrow spaces such as corridors and circulation routes
Maximizes energy savings through occupancy-based and daylight-responsive lighting control
Ensures safe and comfortable illumination throughout passage areas
Available in both recessed and surface-mounted formats for greater installation flexibility
Simplifies installation through innovative plug-in terminals and intuitive commissioning tools
Enables rapid parameter adjustment via local potentiometers or optional remote control
Reliable LED switching performance thanks to zero-crossing technology
Discreet and aesthetically integrated design for modern commercial buildings
Supports sustainable building strategies through intelligent lighting automation
