Green-i Flushmount HighBay Presence Detectors

048471, 048472

Features

360° passive infrared (PIR) presence detection
Designed specifically for high-ceiling applications
Detection coverage up to 20 m diameter
Presence detection area up to 314 m²
Automatic ON/OFF lighting control based on occupancy
Adjustable sensitivity and brightness threshold (5 to 2000 lux)
Optional Green-I GI-REM remote control for commissioning and adjustments
Patented sliding ring concealing adjustment controls while maintaining easy access
Zero-crossing technology for reliable switching and improved LED compatibility
Innovative plug-in screw terminals for fast wiring
Supports flexible and rigid cables from 1.5 mm² to 2.5 mm²
Suitable for mounting heights up to 10 m
IP41 protection rating
IK04 impact resistance

Available Options

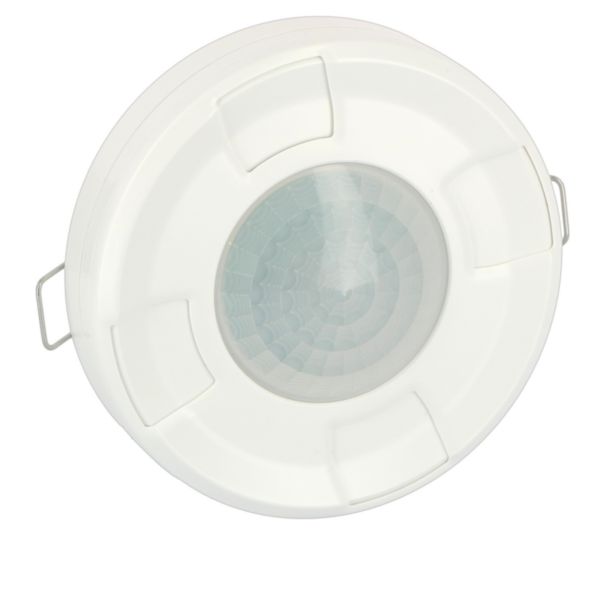

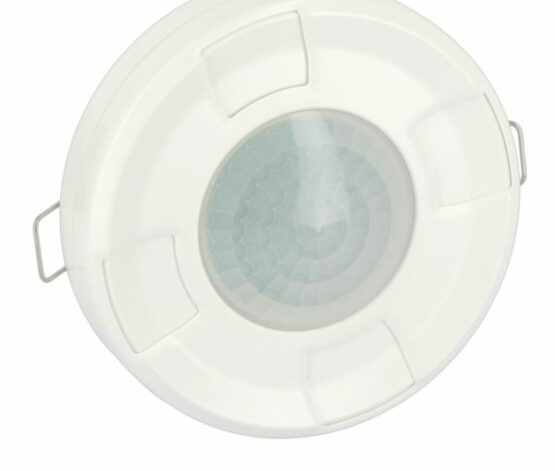

048471: White

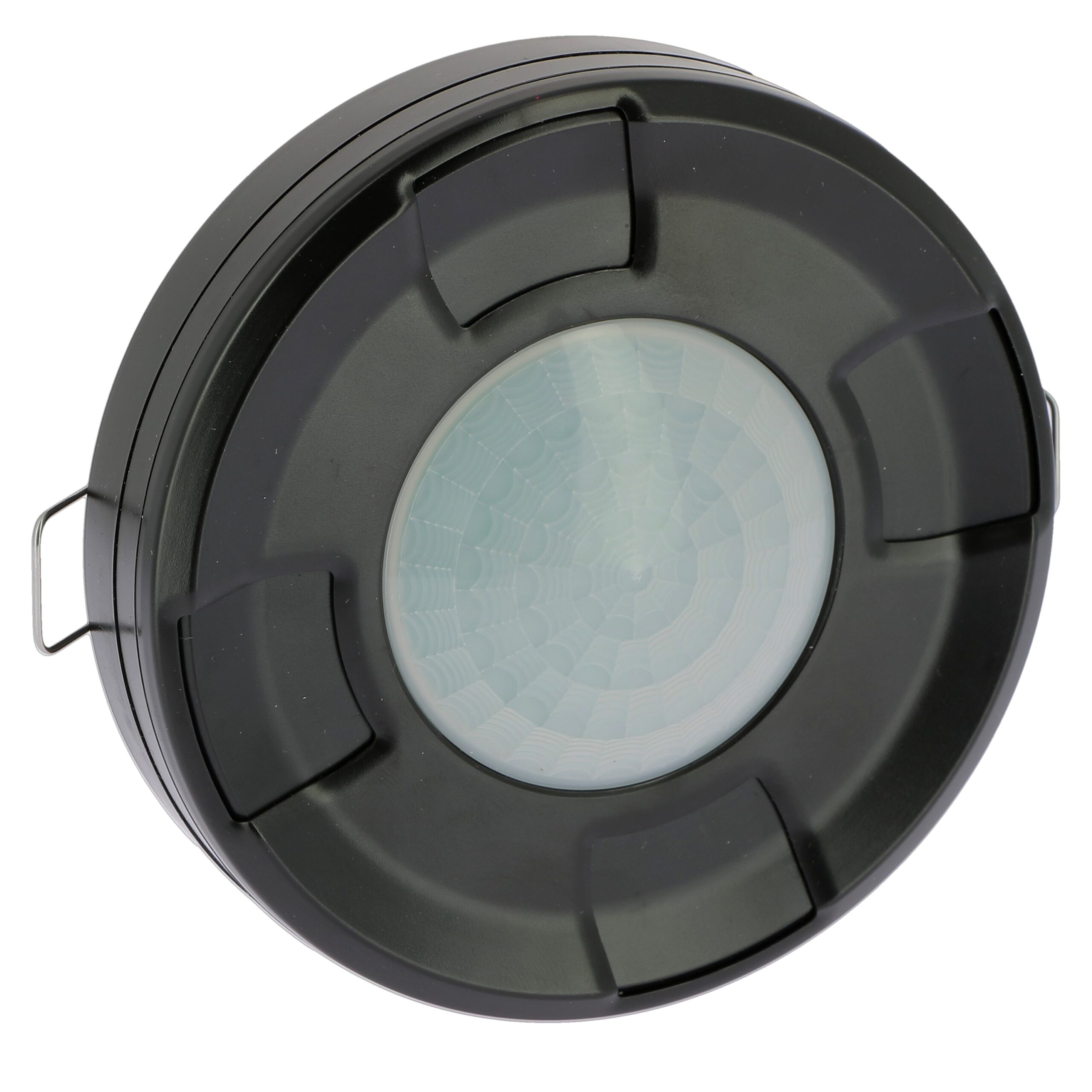

048472: Black

The Green-i High-Bay Presence Detectors are specifically designed for warehouses, industrial buildings, logistics centers, sports halls, and other applications with high ceilings. Featuring 360° passive infrared detection, extended coverage, and intelligent daylight-responsive lighting control, they ensure reliable occupancy detection even at mounting heights up to 10 meters. Combined with simplified installation and flexible commissioning, they help optimize energy consumption while maintaining comfort and safety in large spaces.

Benefits

Specifically optimized for warehouses and buildings with high ceilings
Ensures reliable occupancy detection over large areas from elevated mounting positions
Maximizes energy savings through occupancy-based and daylight-responsive lighting control
Simplifies installation through innovative plug-in terminals and intuitive configuration tools
Allows quick adjustment via local potentiometers or optional remote control
Provides reliable switching performance for LED and conventional lighting systems
Supports sustainable building strategies by reducing unnecessary lighting operation
Combines wide-area coverage with a discreet recessed design
