Green-i Surfacemount Highbay Presence Sensors

048473, 048474

Features

360° passive infrared (PIR) motion detection
Detection coverage up to 20 m diameter
Presence detection area up to 314 m²
Automatic ON/OFF lighting control based on occupancy
Adjustable sensitivity and brightness threshold (5 to 2000 lux)
Optional Green-I GI-REM remote control for commissioning and configuration
Innovative screw plug-in terminals for fast and reliable wiring
Compatible with flexible and rigid cables (1.5 mm² to 2.5 mm²)
Zero-crossing technology for improved LED switching performance and reduced inrush current
Suitable for LED and conventional lighting loads
IP55 protection rating
IK04 impact resistance

Available Options

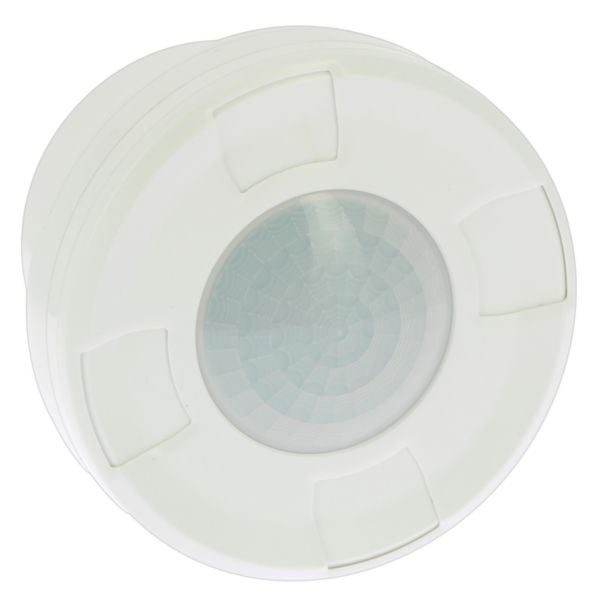

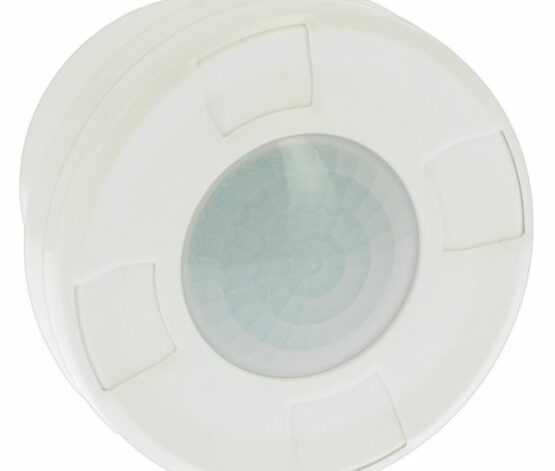

048473: White

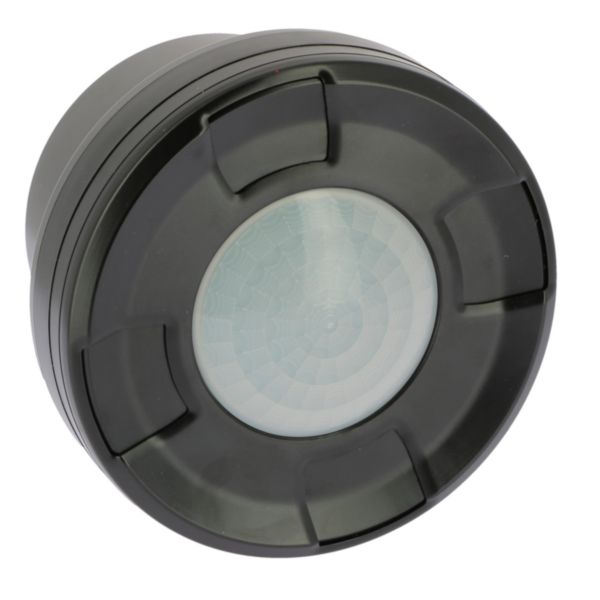

048474: Black

The Green-i Highbay Motion Sensors are designed for intelligent lighting control in warehouses, industrial facilities, logistics centers, and large indoor spaces with high ceilings. Combining 360° passive infrared detection, daylight harvesting, and robust IP55 protection, these sensors automatically control lighting based on occupancy and ambient light levels, helping reduce energy consumption while ensuring optimal illumination in demanding environments.

Benefits

Optimized for warehouse and industrial environments with high ceilings
Maximizes energy savings through occupancy- and daylight-based lighting control
Wide-area coverage reduces the number of sensors required in large spaces
Simplifies installation through plug-in terminals and easy commissioning options
Enhances reliability and lighting system longevity with zero-crossing switching technology
Robust IP55 construction ensures dependable performance in demanding environments
Supports sustainable building strategies and energy-efficient lighting operation
Combines functional performance with a clean and discreet design
