48460, 048461

Green-i IP reinforced Multi mounting Presence Detectors

Features
  • 360° passive infrared (PIR) presence detection
  • Detection coverage up to 8 m diameter
  • Presence detection area up to 50 m²
  • Automatic ON/OFF lighting control based on occupancy
  • Adjustable sensitivity and brightness threshold (5 to 2000 lux)
  • Optional Green-I GI-REM remote control for commissioning and adjustments
  • Push-button interface for manual control and commissioning
  • Zero-crossing technology for reliable switching and enhanced LED compatibility
  • Adjustable sensor head for installation flexibility
  • Innovative plug-in screw terminals for fast and reliable wiring
  • Supports flexible and rigid cables from 1.5 mm² to 2.5 mm²
  • IP55 protection against dust and water ingress
  • IK04 impact resistance

Available Options

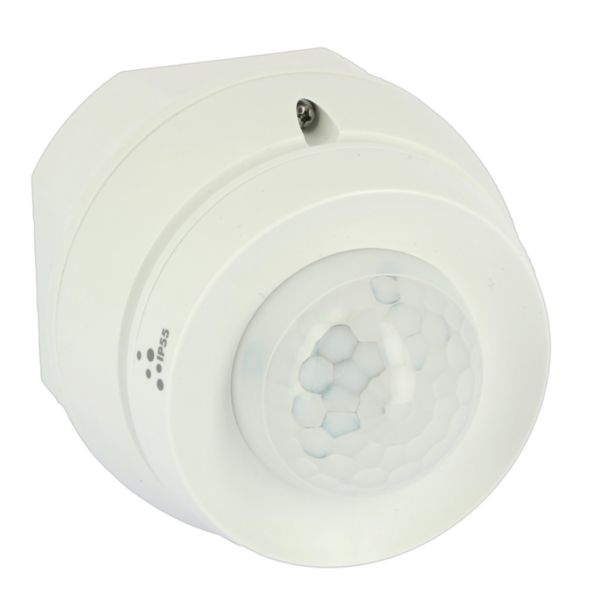

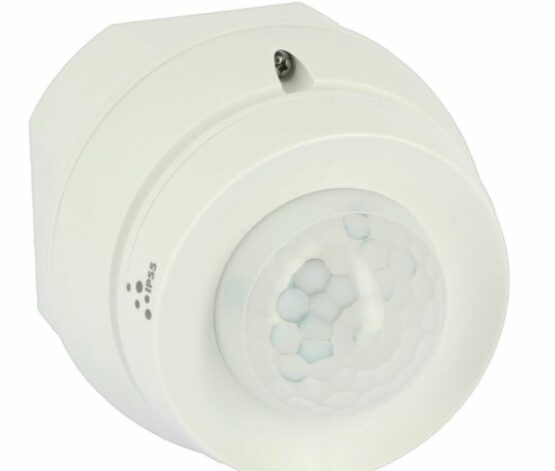

  • 48460: White

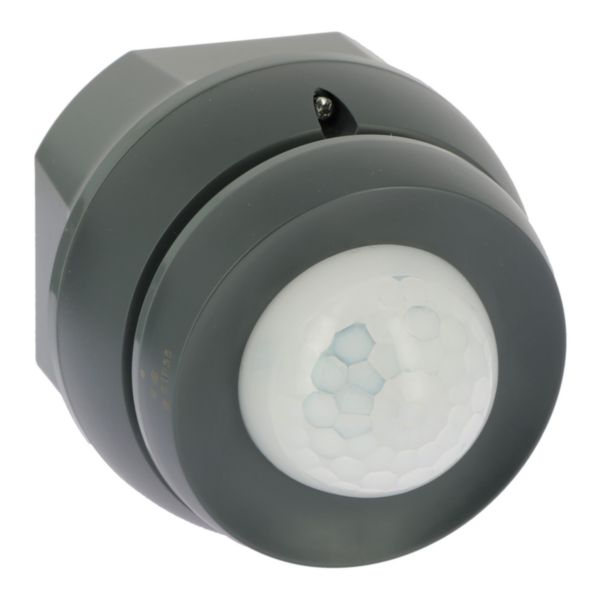

  • 048461: Graphite Grey



TheGreen-i IP reinforced Multi mounting Presence Detectors are robust PIR sensors designed for reliable lighting control in outdoor and semi-outdoor environments. They automatically switch lighting according to occupancy and ambient light levels, helping improve safety, comfort, and energy efficiency. Their compact design, orientable detection head, and simplified installation make them ideal for building entrances, covered walkways, canopies, terraces, and outdoor circulation areas.

Benefits

  • Delivers reliable 360° occupancy detection for outdoor and sheltered spaces
  • Optimizes energy consumption through occupancy-based and daylight-responsive lighting control
  • Improves comfort and safety around buildings and access routes
  • Flexible wall or ceiling installation adapts to various project requirements
  • Simplifies installation and commissioning through plug-in terminals and intuitive adjustment tools
  • Ensures long-term reliability in demanding outdoor environments thanks to IP55 protection
  • Supports sustainable building strategies by reducing unnecessary lighting operation
  • Combines compact aesthetics with high-performance detection capabilities
LG-048460 (white)
LG-048461 (graphite)
