MWS6

Compact, flush mounted, ceiling, microwave presence detectors

Features

Key features:

Low profile design
Self contained unit
Pluggable
IP40 rated

Available options:

PRM – 1 channel
PRM-LV – Low voltage
2CH – 2 channel
2CH-NC – 2 channel normally closed fail-safe
VFC – Voltage free contact
VFC NC – Normally closed
VFC LV – Volt free contact, low voltage
AD – Analogue dim
DD- Digital Dim (Dali/Dsi)
KNX

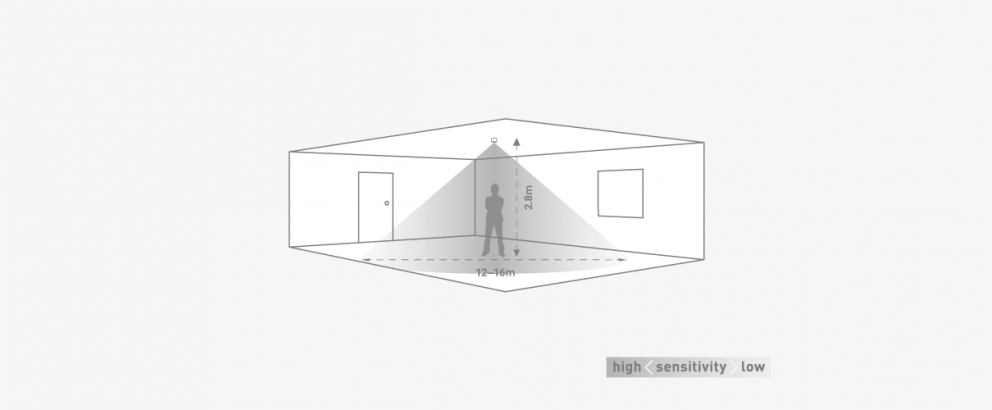

The MWS6 is a mid-range microwave presence/absence detector for the automatic control of lighting, heating and ventilation.

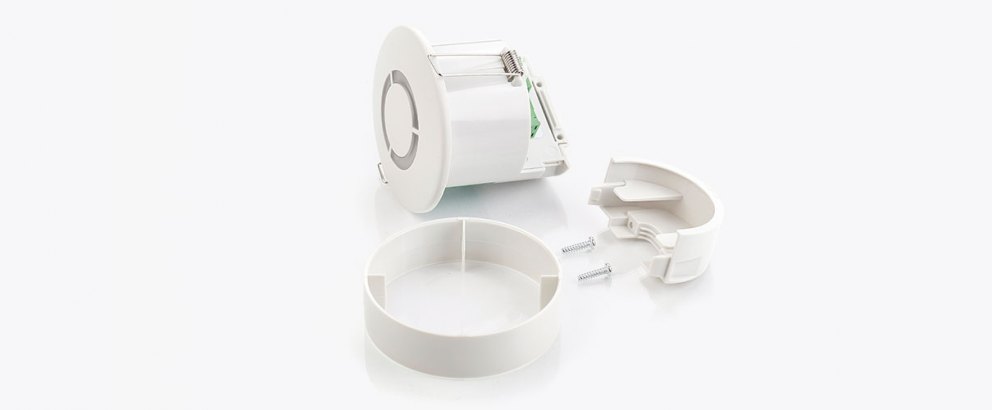

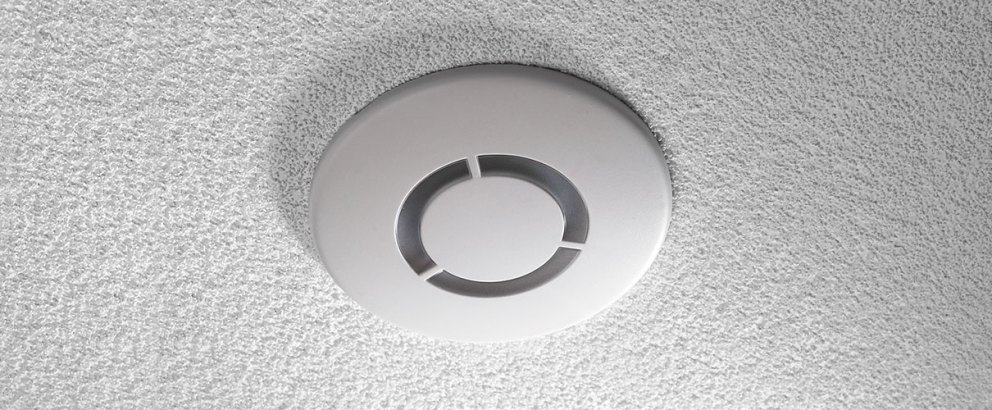

This detector has a low profile design which allows flush mounting into a ceiling tile, or surface mounting using a detector back box. Its reduced head size makes it unobtrusive to occupants. The MWS6 detects movement using a highly sensitive microwave detector. The simple plug in connections reduce installation time. The optional infrared remote handset allows the user to override the set up.

Functionality is fully programmable using either the UHS5 or UNLCDHS handsets.
